Simulink Block for LTI Systems
2-57
Simulink Block for LTI Systems

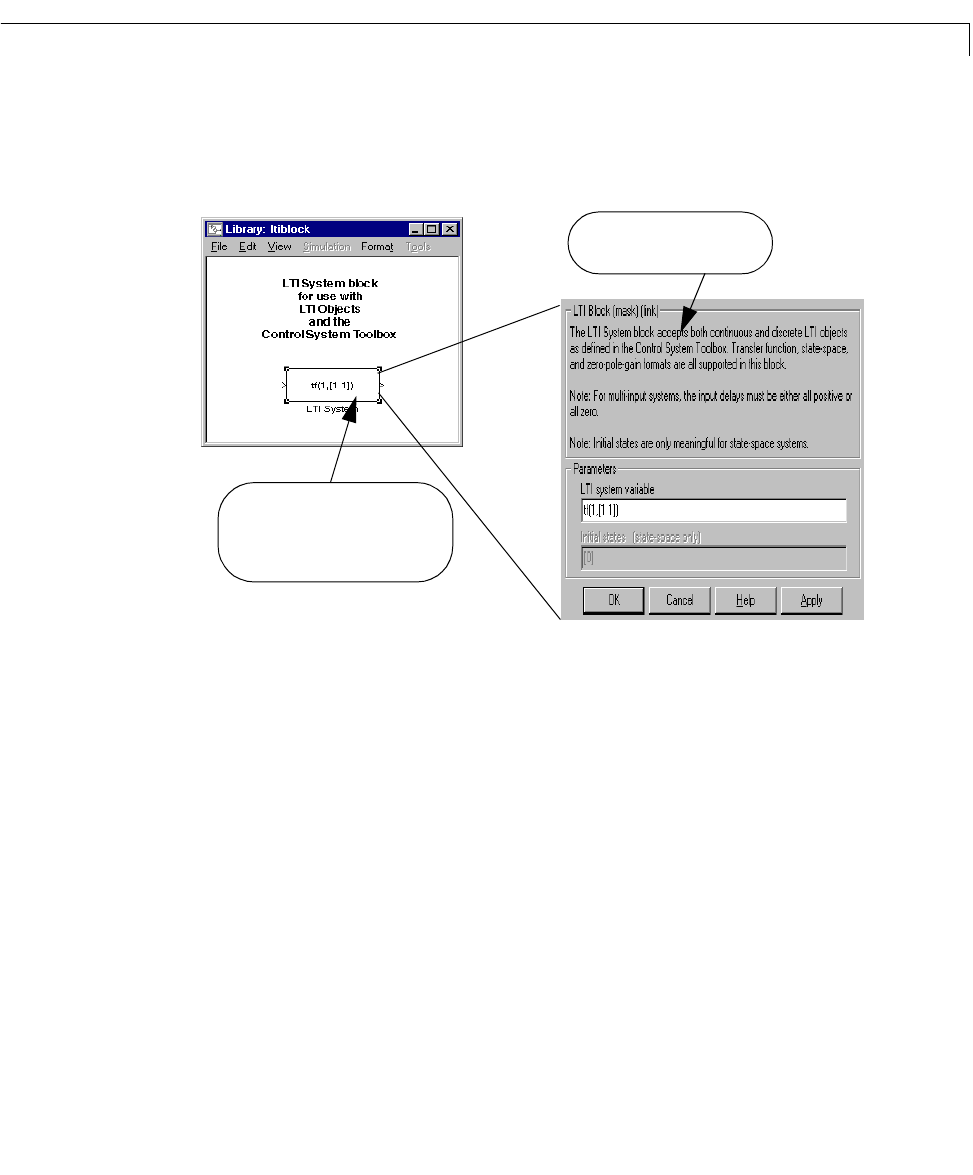

You can incorporate LTI objects into Simulink diagrams using the LTI System
block shown below.
The LTI System block can be accessed either by typing
ltiblock
at the MATLAB prompt or by selecting Control System Toolbox from the
Blocksets and Toolboxes section of the main Simulink library.
The LTI System block consists ofthedialog box shown on the right inthe figure
above. In the editable text box labeled
LTI system variable, enter either the
variable name of an LTI object located in the MATLAB workspace (for
example,
sys) or a MATLAB expression that evaluates to an LTI object (for
example,
tf(1,[1 1])). The L TI System block accepts both continuous and
discrete L TI objects in either transfer function, zero-pole-gain, or state-space
form. Simulink converts the model to its state-space equivalent prior to
initializing the simulation.
Use the editable text box labeled
Initial states to enter an initial state vector
for state-space models. The concept of “initial state” is not well-defined for
Double-click on the block in your
Simulink diagram to display or
modify model information.
This mask is linked to an LTI
block in a Simulink diagram.
