15 Right-Click Menus for Response Plots
15-6
Zoom

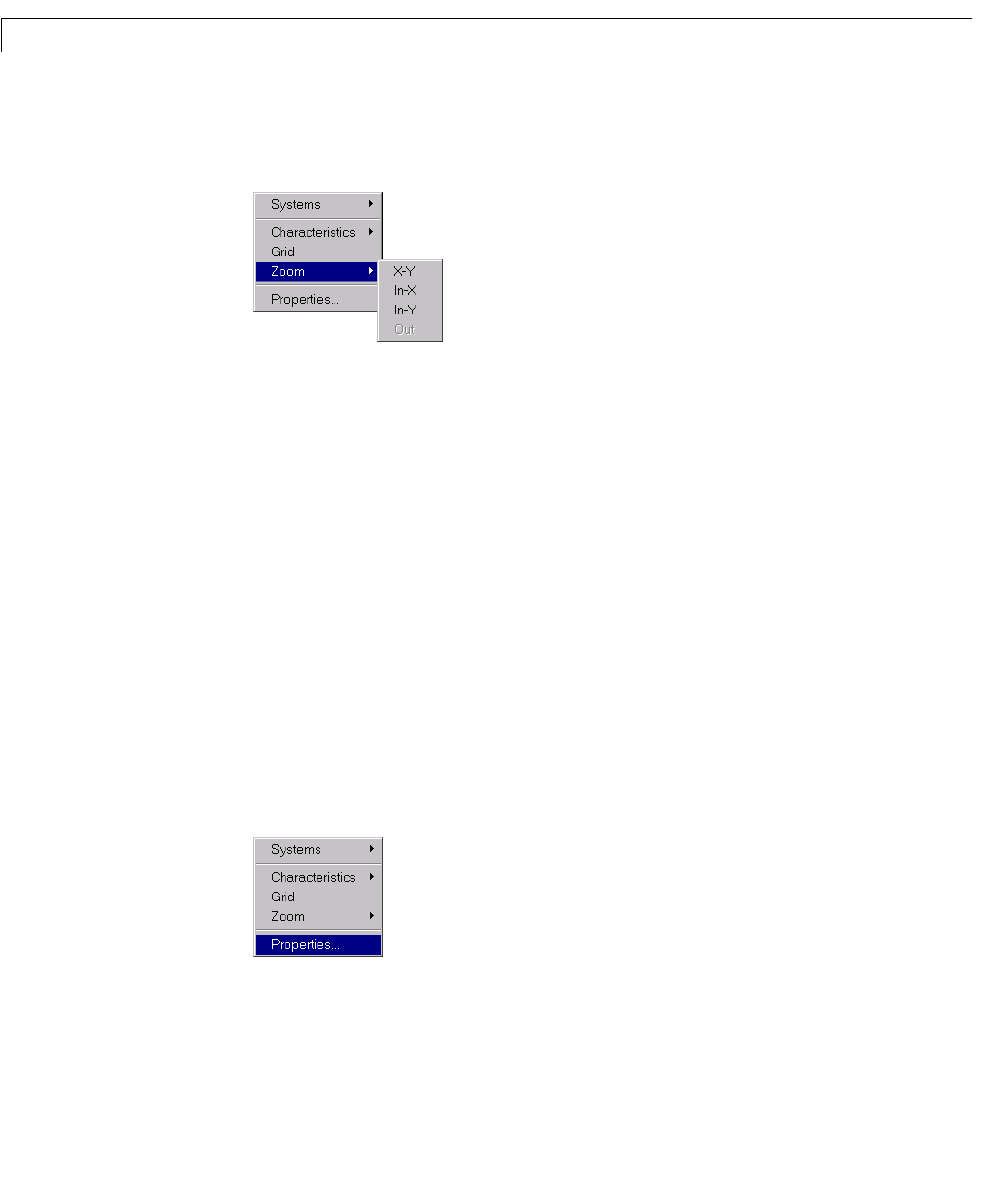

The Zoom command zooms in and out of the plot region selected.
There are four options:
•
In-X — Zoom in on the specified strip of the x axis.
•
In-Y — Zoom in on the specified strip of the y axis.
•
X-Y — Zoom in on the specified box region of the x and y axes.
•
Out —Zoomout.
When you select
In-X or In-Y, left-click the mouse to specify the region of the x
or y axis that you want to zoom in on. Similarly, for the
X-Y option, left-click
and drag your mouse to create a rectangular region that you want to zoom in
on.
Out restores the previous appearance of the plot. Note that Out is grey when
you have reached the limit of zooming out.
Properties
Use Properties to open the Property Editor. This GUI allows you to customize
labels, axes limitsandunits,gridsandfont styles, and response characteristics
(e.g., rise time) for your plot.
