Right-Click Menus for SIXXSO Systems
When you create a response plot for a SISO system, you have available a set of
right-click menu options, which are desribed in the following sections.
Systems
Use Systems to select which of the imported systems to display. Selecting a
systemcauses a check mark to appear beside the system. To deselect asystem,
select it again; the menu toggles between selected and deselected.
Characteristics

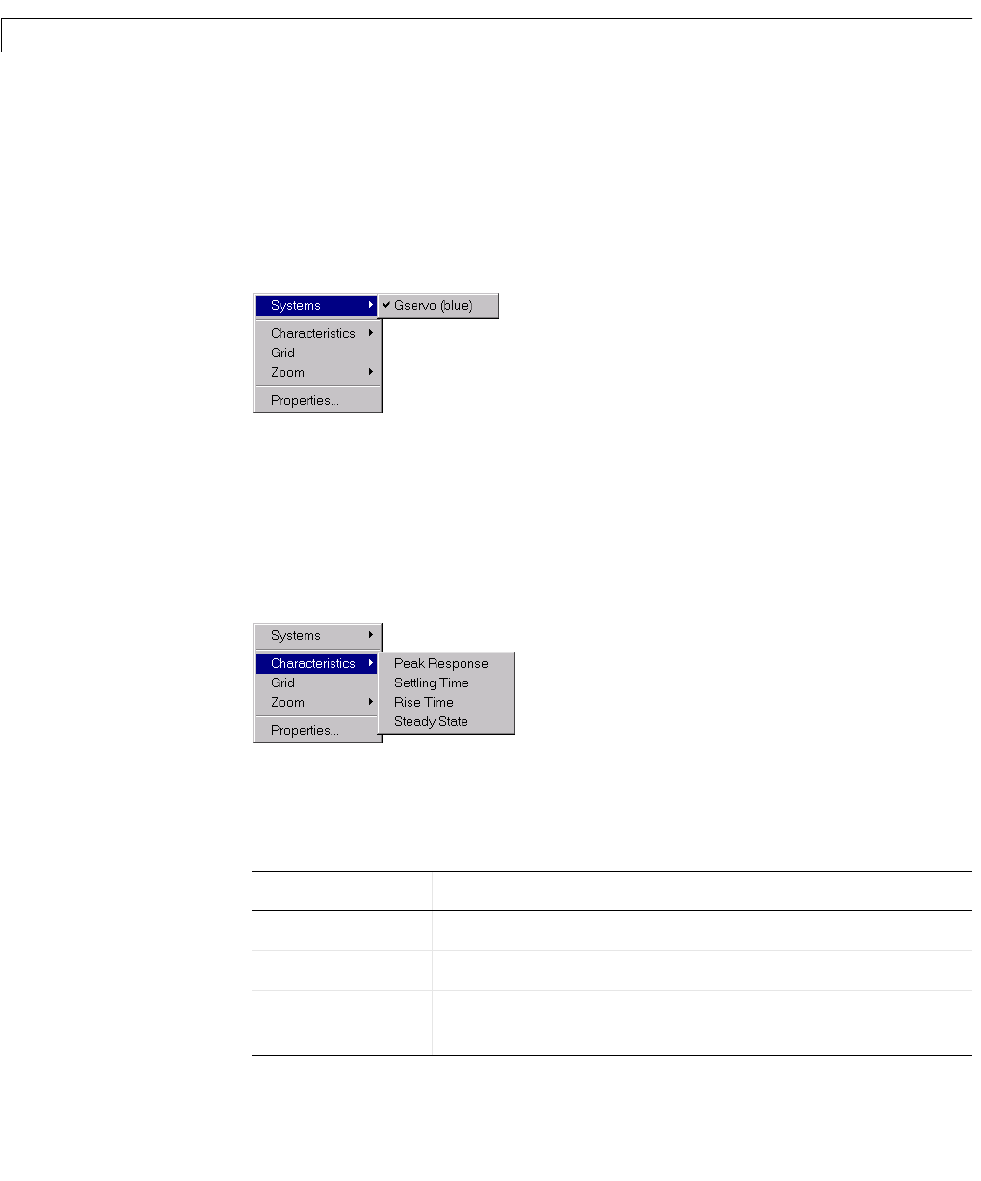

The Characteristics menu changes for each plot response type. This picture
shows the options for a step response.
The following table lists the characteristics available for each response plot
type.
Table 15-1: Options Available from the Characteristics Menu
Function Characteristics
bode
Peak Response
bodemag
Peak Response
impulse
Peak Response
Settling Time
