15 Right-Click Menus for Response Plots
15-2
All the response plots that the Control System Toolbox creates haveright-click
menus available. The plots include the following:
•
bode
•bodemag
•impulse
•initial
•nichols
•nyquist
•pzmap
•sigma
•step
Note Click on any of the items in the right-click menus, shown below, to get
help on the feature.

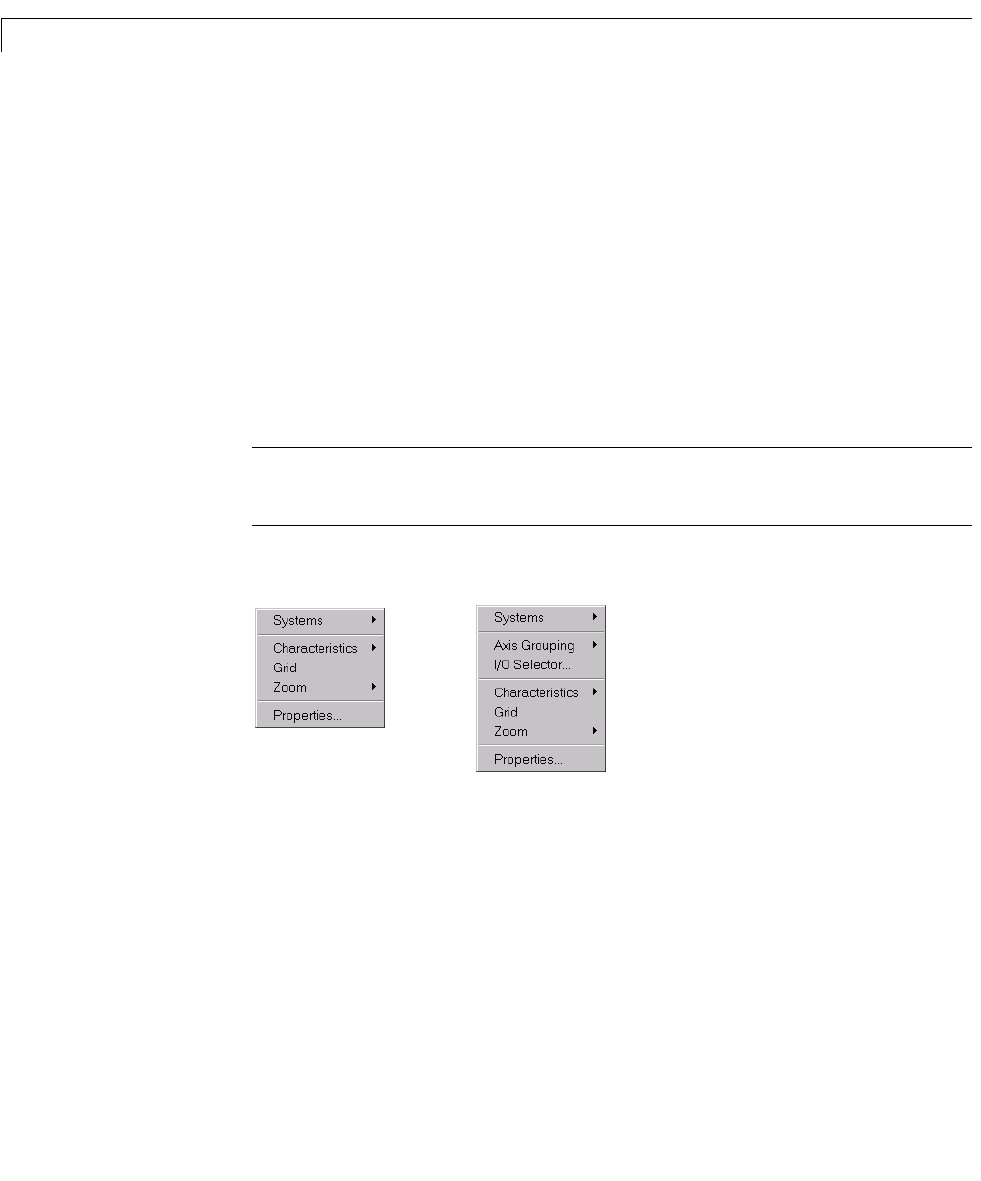

Figure 15-1: Right-Click Menus for SISO and MIMO/LTI Array Models.
You can do the following using the right-click menus for response plots:
•Select and deselect imported systems
•Change plot characteristics
•Add and remove grid lines
•Zoom in and out of selected plot regions
•Open the Property Editor the the selected plot
•In the MIMO/LTI array case:
