Right-Click Menus for MIMO and LTI Arrays
14-25
Axis Grouping
YoucanusseAxisGroupingtochangethe grouping ofplots inyourLTIViewer.

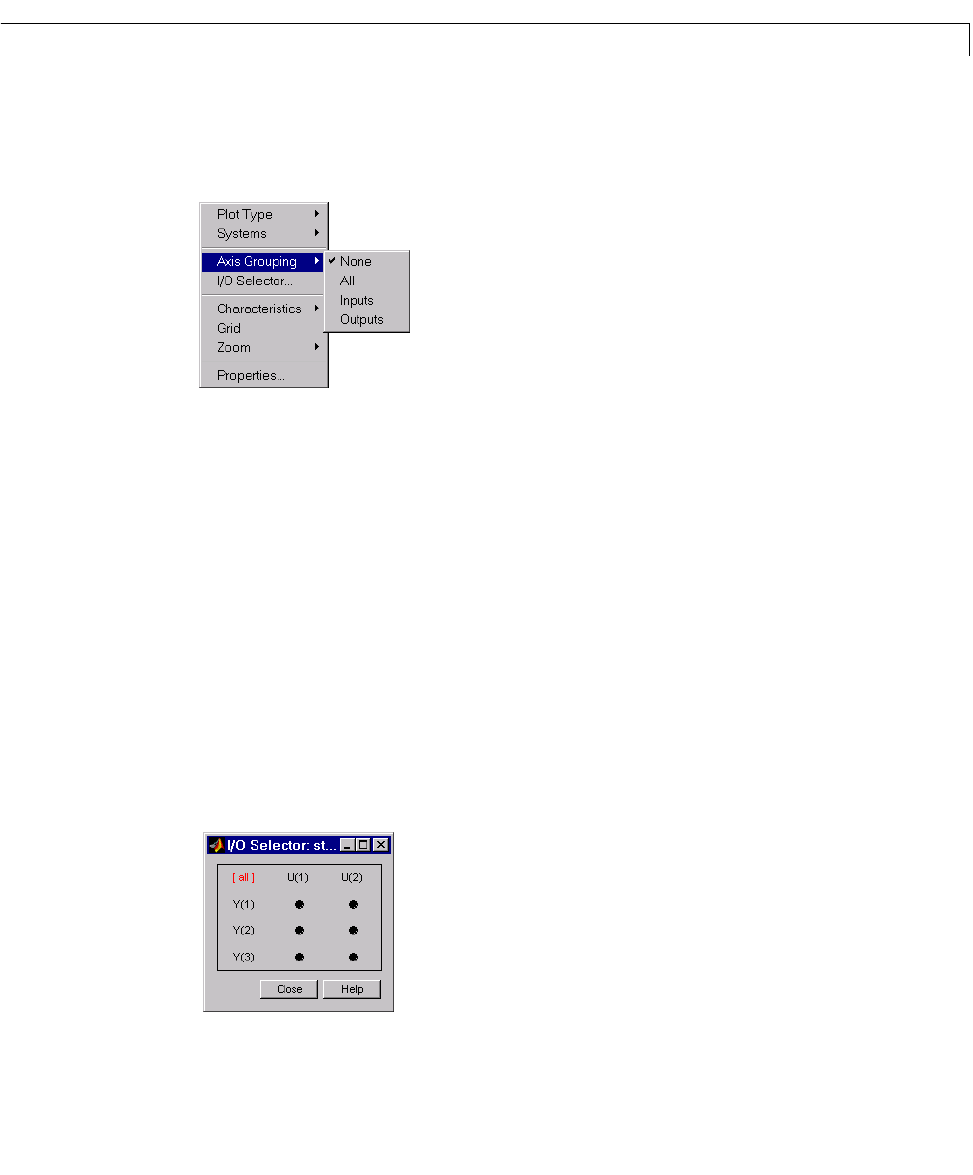

This picture shows the menu options.
There are four options:
•
None —Bydefault,thereisnoaxisgrouping.Forexample,ifyoudisplaythe
step responses for a 3-input, 2- output system, there will be six plots in your
LTI Viewer.
•
All — Groups all the responses into a single plot
•
Inputs — Groups all the responses by inputs. For example, for a 3-input,
2-outputsystem, selectingInputsreconfigures the viewer so that there are 3
plots. Each plot contains two curves.
•
Outputs — Groups all the responses by outputs. For example, for a 3-input,
2-outputsystem, selectingInputsreconfigures the viewer so that there are 2
plots. Each plot contains three curves.
I/O Selector
I/O Selector opens the I/O Selector window, shown below.
The
I/O Selector window contains buttons corresponding to each I/O pair. In
this example, there are 2 inputs and 3 outputs, so there are six buttons. By
