14 LTI Viewer Reference
14-20
Nichols Charts
Nichols plots the Nichols Chart for the model.

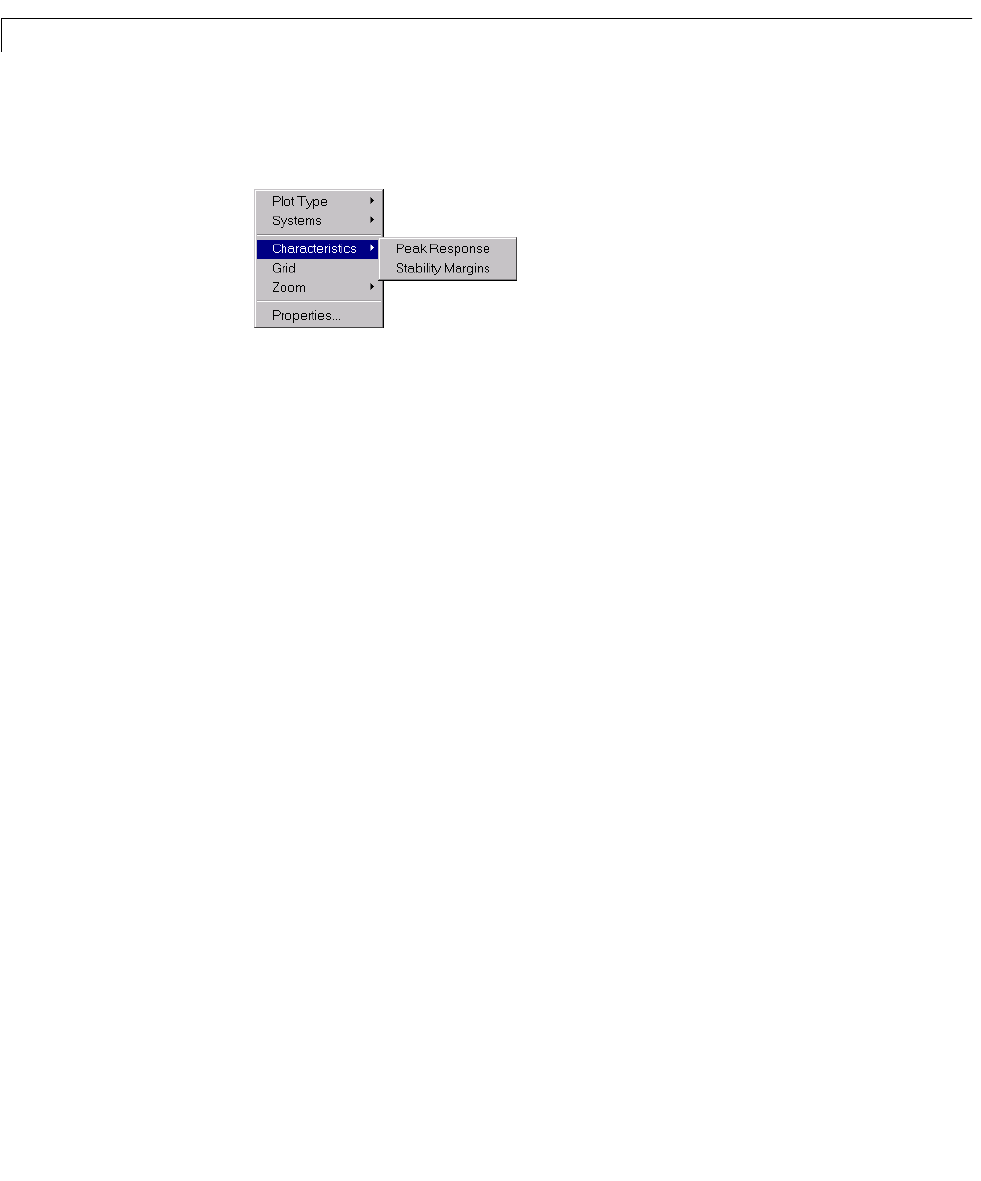

The LTI Viewer can display the following types of information in the Nichols
chart:
•
Peak Response — The maximum value of the Nichols chart in the plotted
region.
•
Stability Margins — The gain and phase margins for the Nichols chart.
