14 LTI Viewer Reference
14-6
b Hold the Control key and click on individual variables.
c Hold the Shift key while clicking, to select a range.
•Press the
OK or Apply Button
Forimporting,theLTIBrowserlists onlytheLTI modelsinthemainMATLAB
workspace.
Export Using the LTI Viewer Export Window

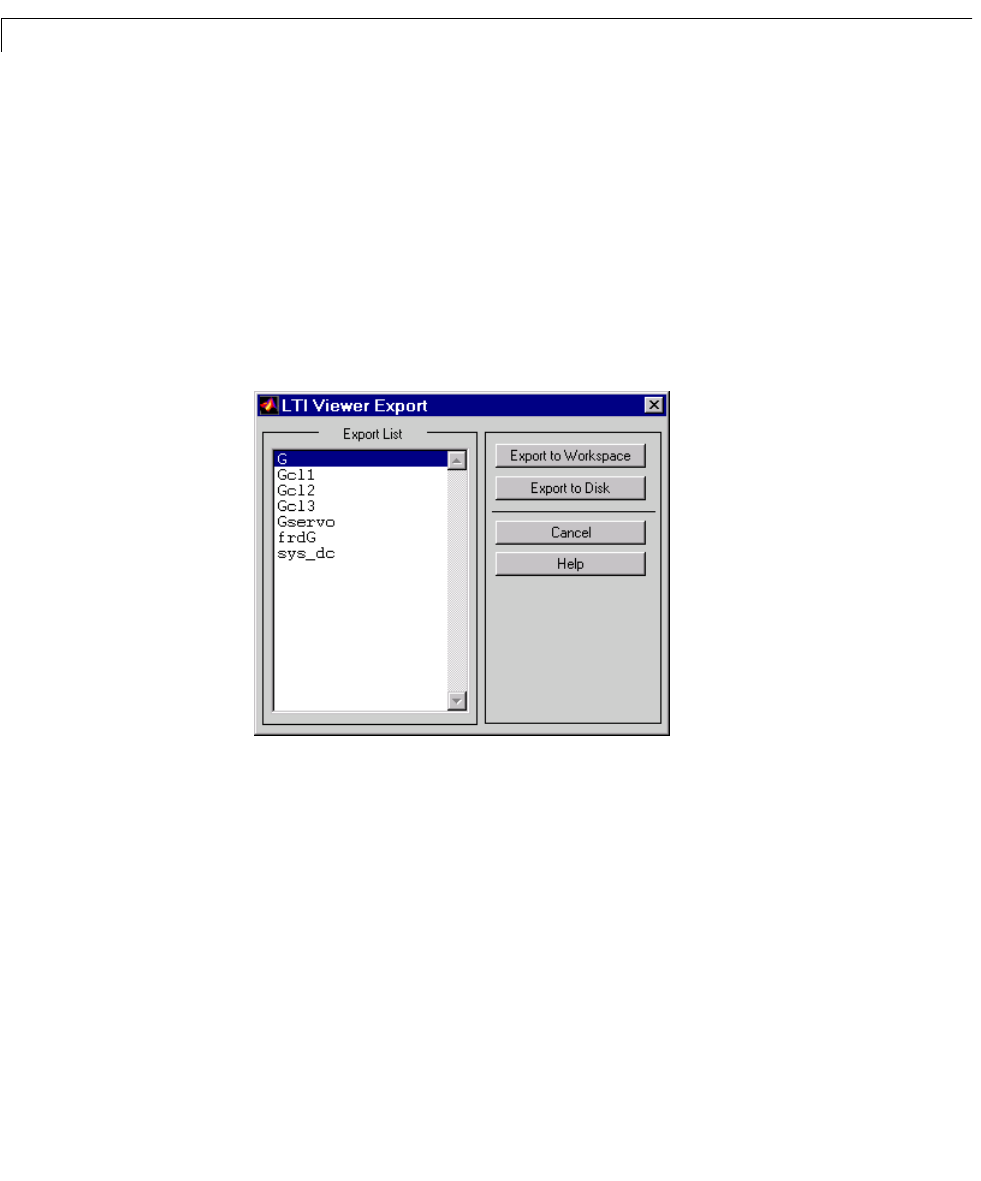

Export in the File menu opens the LTI Viewer Export window, shown below.
The LTI Viewer Export window lists all the models with responses currently
displayed in your LTI Viewer. You can export models back to the MATLAB
workspace or to disk. In the latter case, the Control System Toolbox saves the
files as MAT-files.
Toolbox Preferences
Select Toolbox Preferences to open the Toolbox Preferences Editor, which
sets preferences for all response objects in the Control System Toolbox,
including the viewer.
Print
Print sends the entire LTI Viewer window to your printer.
