Feedback Structure
13-25
Feedback Structure
To the right of the Current Compensator panel is the Feedback Structure
panel, which is shown in its default configuration below.

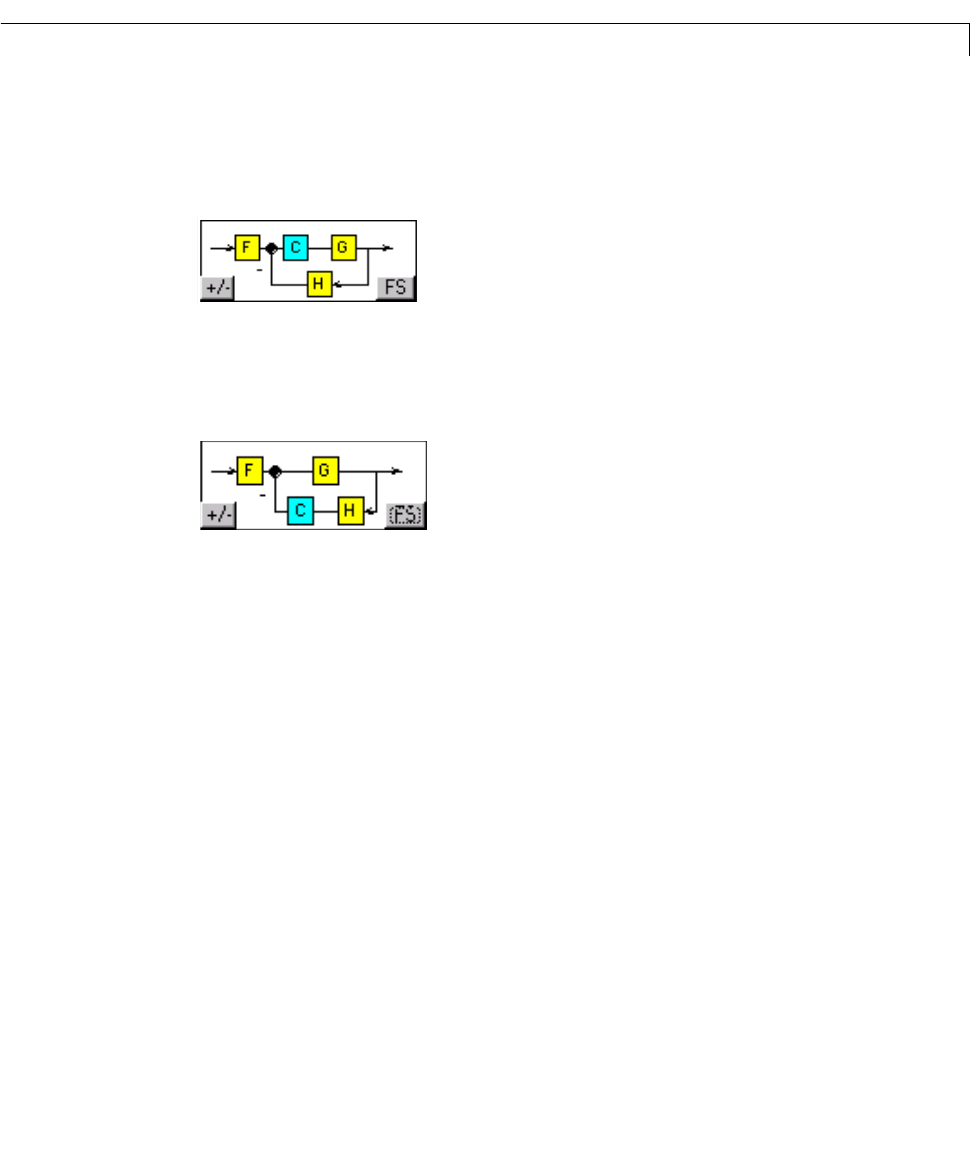

Figure 13-11: The Feedback Structure Panel
To switch to the alternate feedback structure, press the FS button. This figure
shows the new feedback structure.
Figure 13-12: Alternate Feedback Structure with the Compensator in the
Feedback Loop
Pressing the +/- button toggles between positive and negative feedback signs.
Negative feedback is the default.
