13 SISO Design Tool Reference
13-12
Closed Loop Poles
Usethismenuitemtodisplaytheclosed-looppolevaluesofthecurrentsystem.
Design History
Selecting Design History opens the Design History window, which displays all
the actions you’ve performed during a design session. You can save the history
to an ASCII flat text file.
Tools

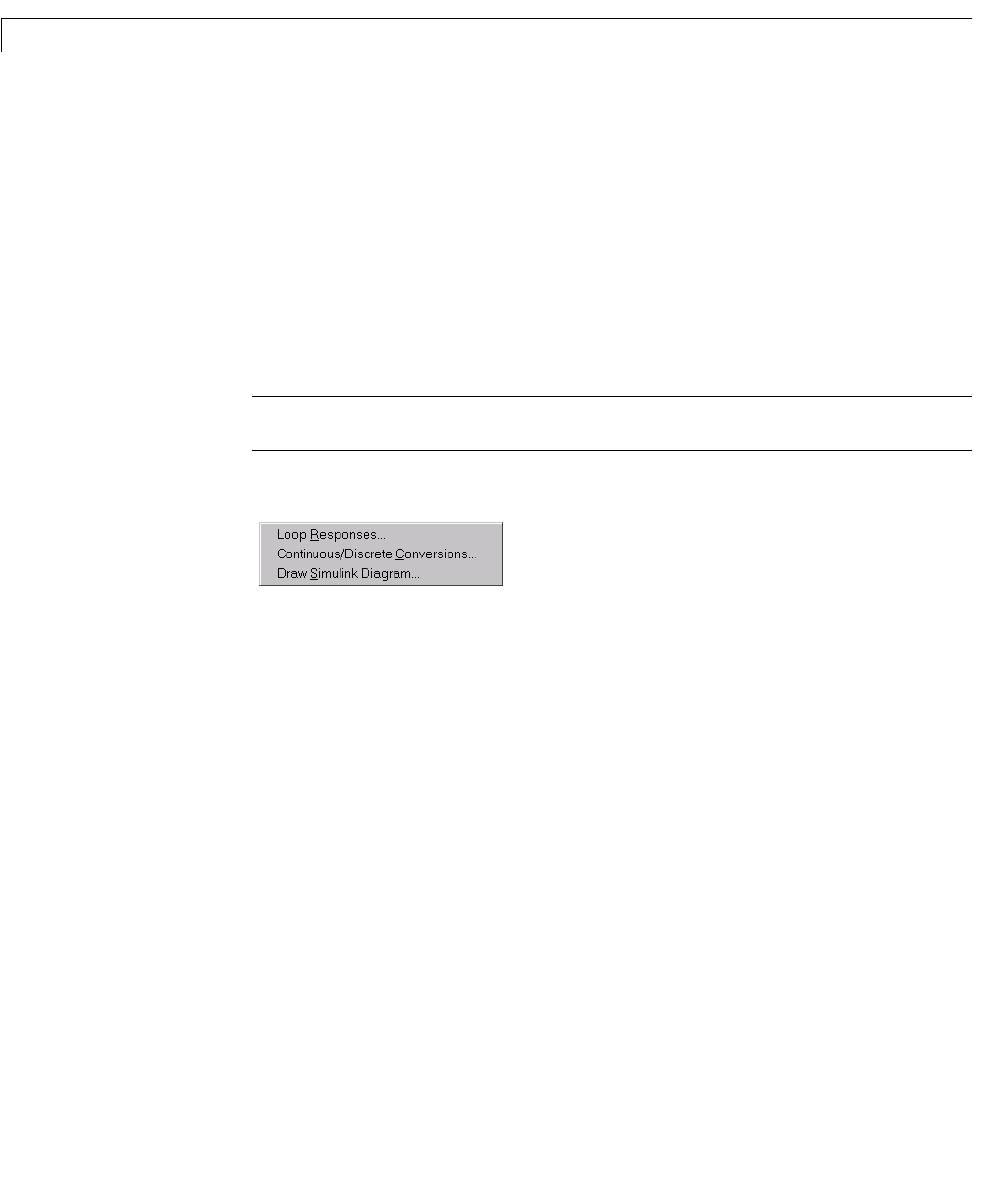

Note Click on items in the Tools menu pictured below to get help contents.
Loop Responses
Select Loop Responses to open an LTI Viewer that is dynamically linked to
your SISO Design Tool. When you make changes to the design in the SISO
Design Tool, the response plots in the LTI Viewer automatically change to
reflect the new design’s responses.
For examples that use LTI Viewers linked with the SISO Design Tool, see
Designing Compensators in Getting Started with the Control System Toolbox.
See the “LTI Viewer” for a complete description of all the features of the LTI
Viewer.
You have the following choices for which plot appears when opening an LTI
Viewer from the SISO Design Tool:
•
Plant Output (Step) — The closed-loop step response of your system
•
Control Signal (Step) — The open-loop step response of your system
•
Compensator Bode — The open-loop Bode diagram for your compensator
•
Closed-Loop Bode — The closed-loop Bode diagram for your system
