Specifications

13 SISO Design Tool Reference
13-6
•Feedback structure specification — Press Other to toggle between placing
the compensator in the forward and feedback paths
•Model import specification — You can import models for the plant (
G),
compensator (
C), prefilter (F), and/or sensor (H). To import a model, select it
fromthe SISOmodellistandpresstheright-arrowbuttonnexttothedesired
model field.
Export
Selecting Export from the File menu opens the SISO Tool Export Window.

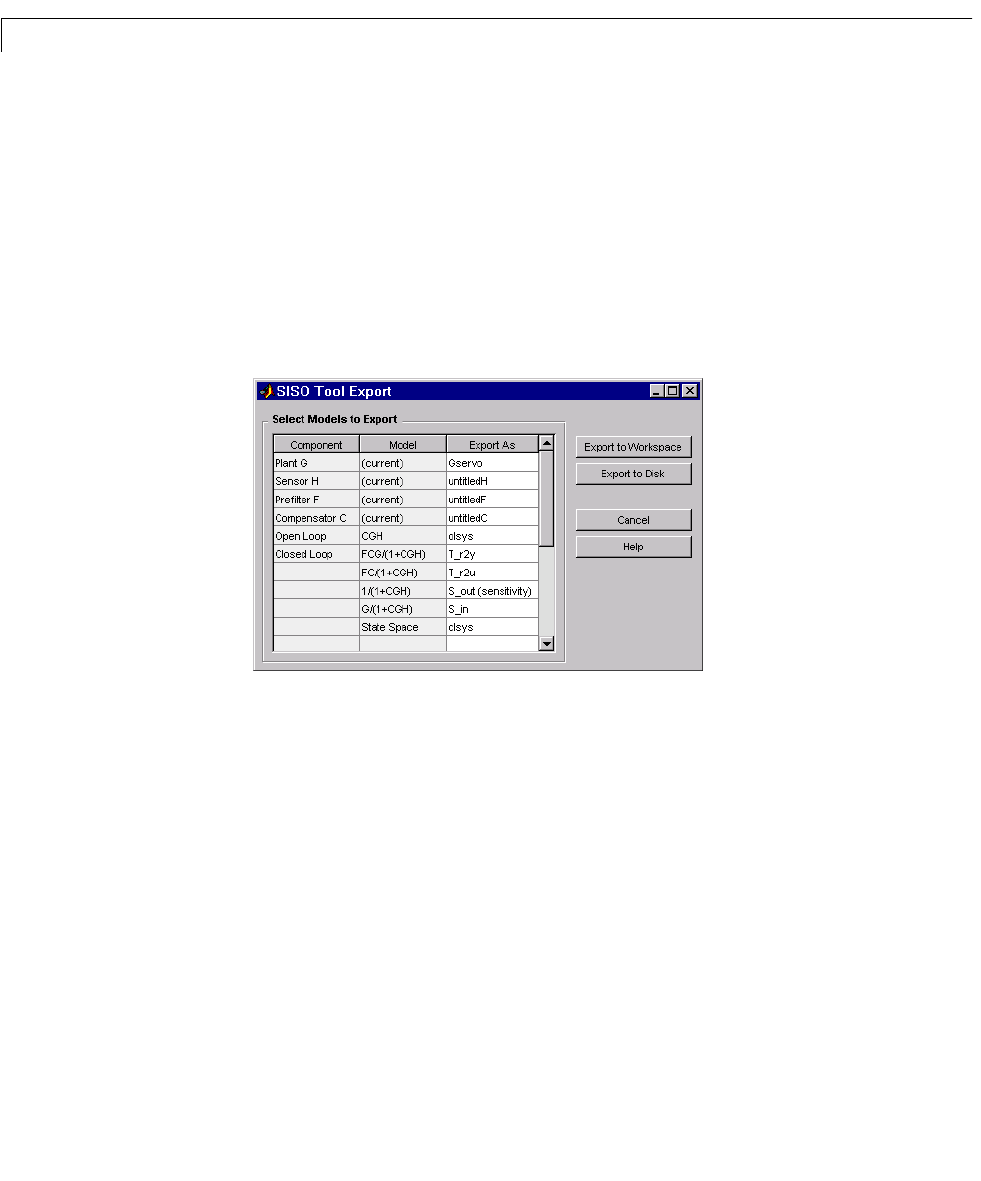

Figure 13-3: The SISO Tool Export Window
With this window, you can:
•Export models to the MATLAB Workspace or to a disk
•Rename models when exporting
•Savevariations on models, includingopenandclosed loopmodels,sensitivity
transfer functions, and state-space representations
Exporting to the Workspace
To export models to the MATLAB workspace, follow these steps:
1 Select the model you want to export from the Component list by left-clicking
the model name. To select more than one model, hold down the
Shift key if
