Specifications

Menu Bar
13-5
Import
Select Import to import models into the SISO Design Tool. Selecting Import
opens the Import System Data window, which is shown below.

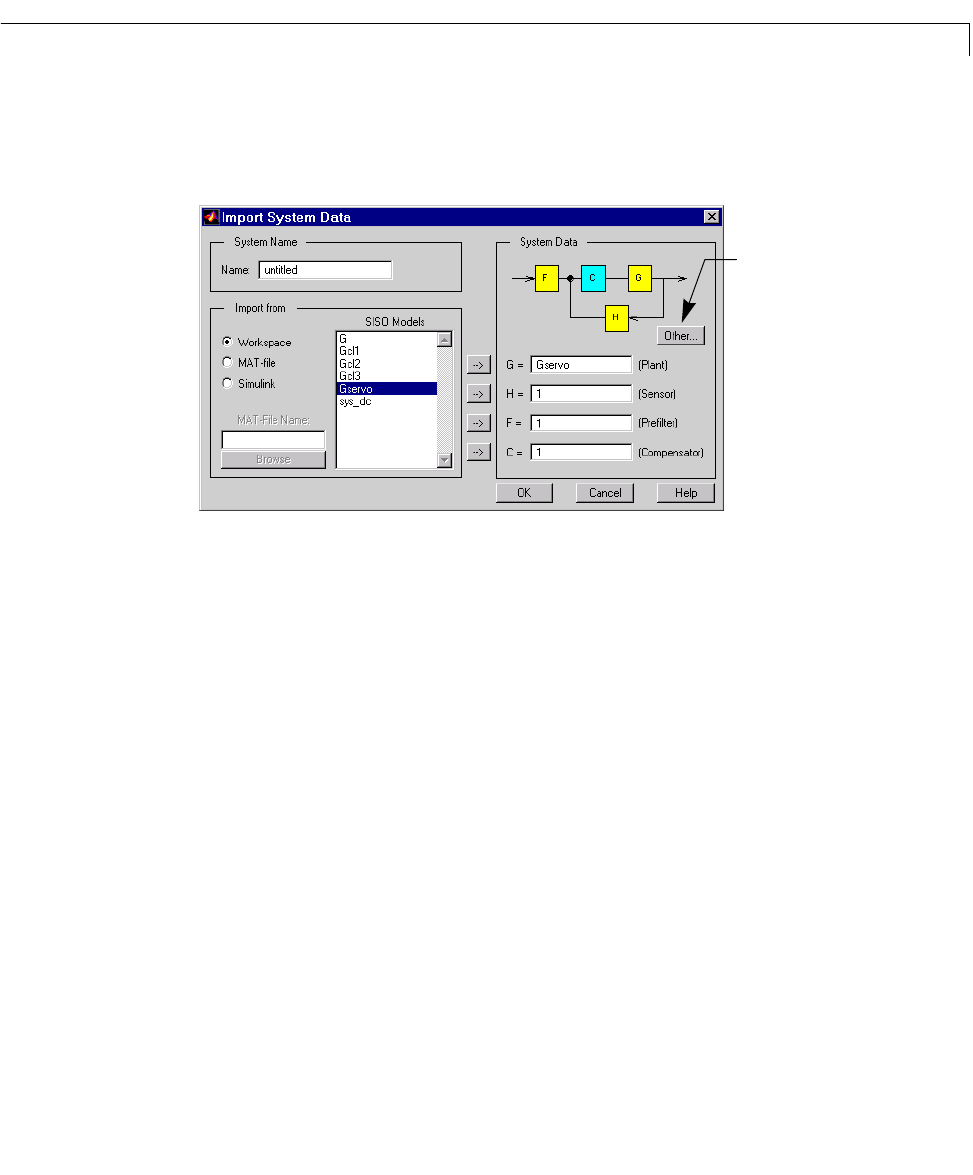

Figure 13-2: The Import System Data Window
The following sections discuss the System Name, Import from, and System
Data panels of the
Import System Data window.
System Name
UsetheName fieldtoassignanametotheimportedsystem.Thedefaultname
is
untitled.
Import From
To import models, select them from the SISO Models list and use the right
arrow buttons to place the models in G (plant), H (sensor), F (prefilter), or C
(compensator). You can import models from:
•The MATLAB Workspace
•AMAT-file
•Simulink (
.mdl files)
System Data
The System Data panel performs two functions:
Press the Other button to
switch to an alternate
feedback structure, where
C,
the compensator, is in the
feedback path.
