Specifications

Yaw Damper for a 747 Jet Transport
10-5

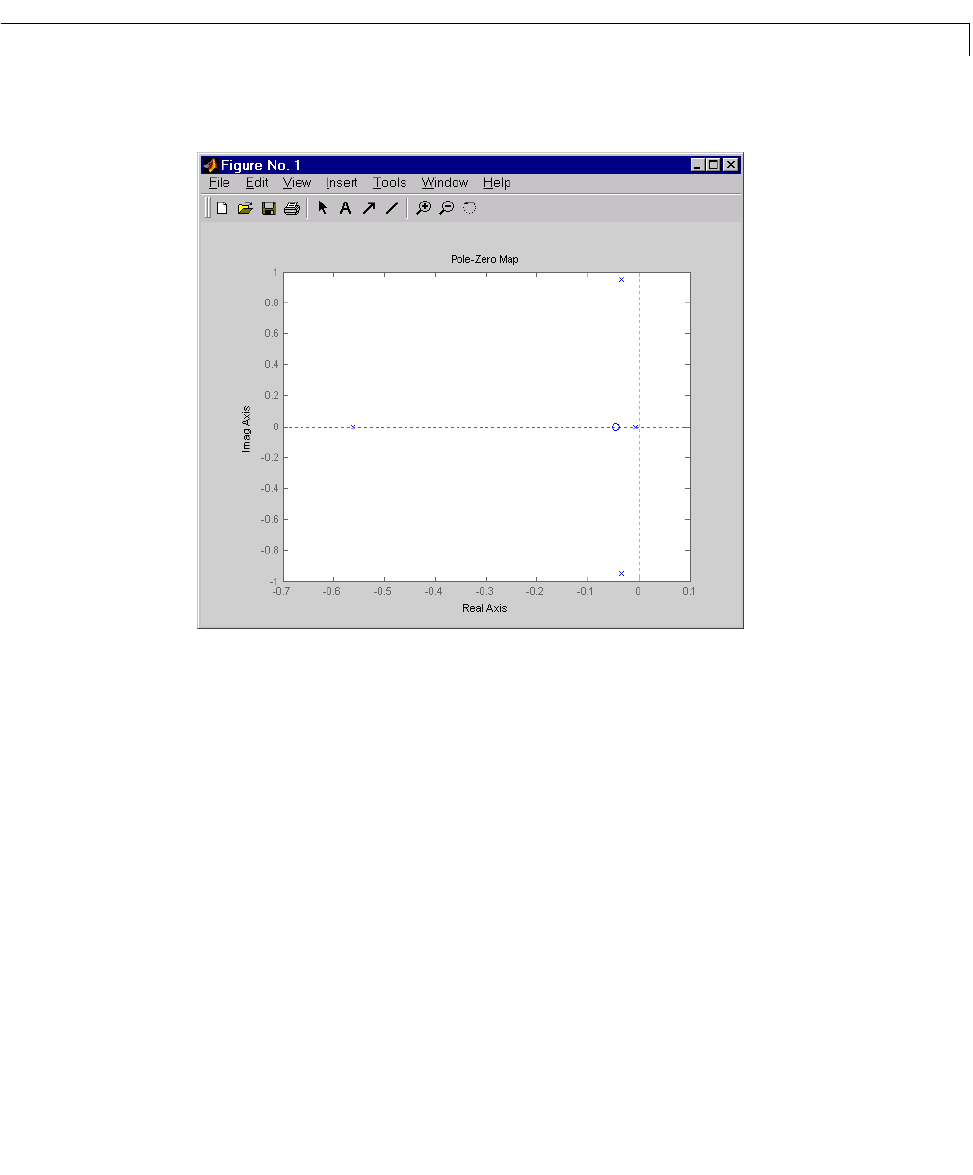

pzmap(sys)
This model has one pair of lightly damped poles. They correspond to what is
called the “Dutch roll mode.”
Supposeyouwanttodesignacompensatorthat increasesthedampingof these
poles, so that the resulting complex poles have a damping ratio with
natural frequency rad/sec. You can do this using the Control System
toolbox analysis tools.
Open-Loop Analysis
First, perform some open-loop analysis to determine possible control
strategies.Startwiththetimeresponse(youcoulduse
step or impulse here).
ζ
0.35
>
ω
n
1
<
