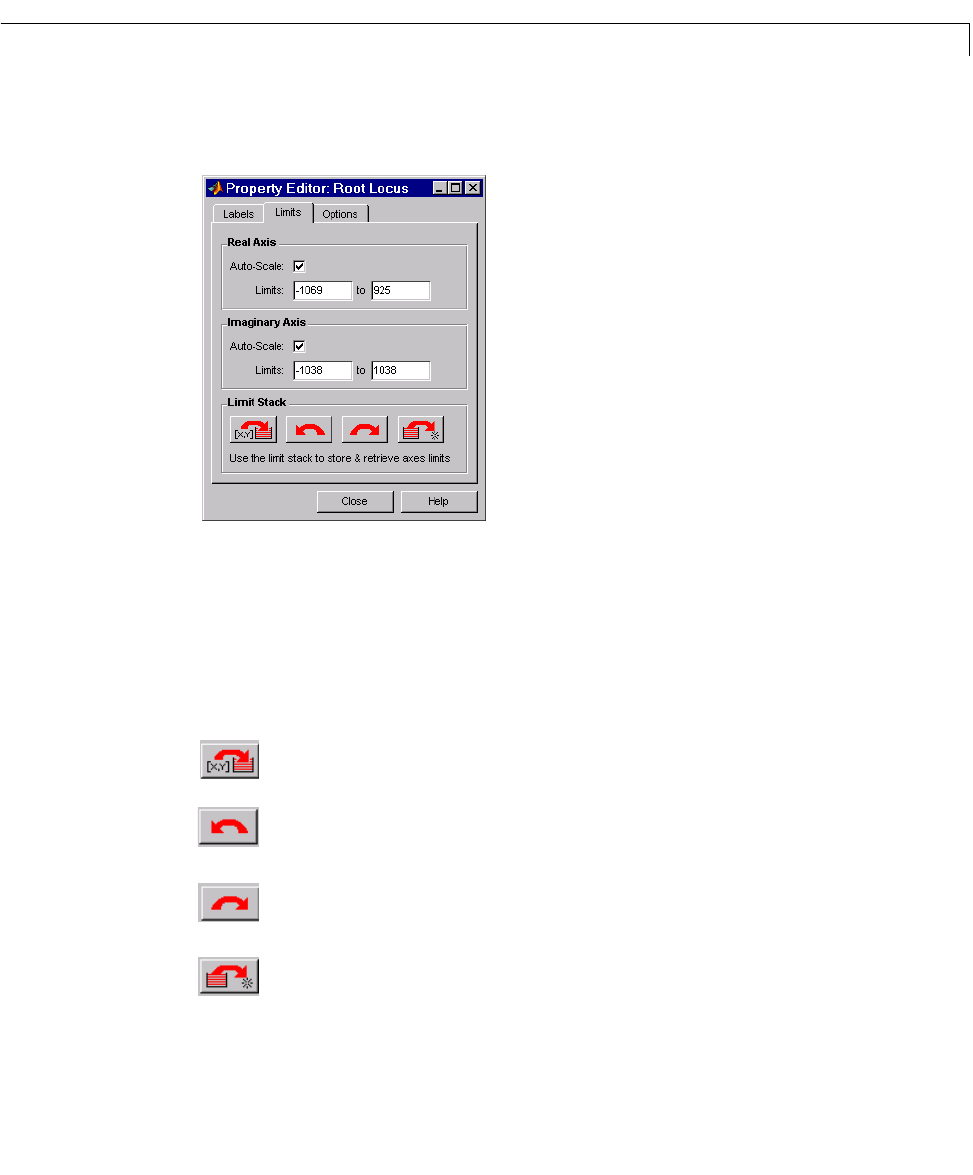

root locus plot. Use the Limits page, shown below, to override the default
settings.
To change the limits, specify the new limits in the real and imaginary axes
Limits fields. The Auto-Scale checkbox automatically deactivates once you
click in a different field. Your root locus diagram updates immediately. If you
want to reapply the default limits, recheck the
Auto-Scale checkboxes.
The LimitStack panel providessupport for storing andretrieving custom limit
specifications. There are four buttons available:
— Add the current limits to the stack
— Retrieve the previous stack entry
— Retrieve the next stack entry
— Remove the current limits from the stack
