Specifications

9 Customizing Response Plot Properties
9-6

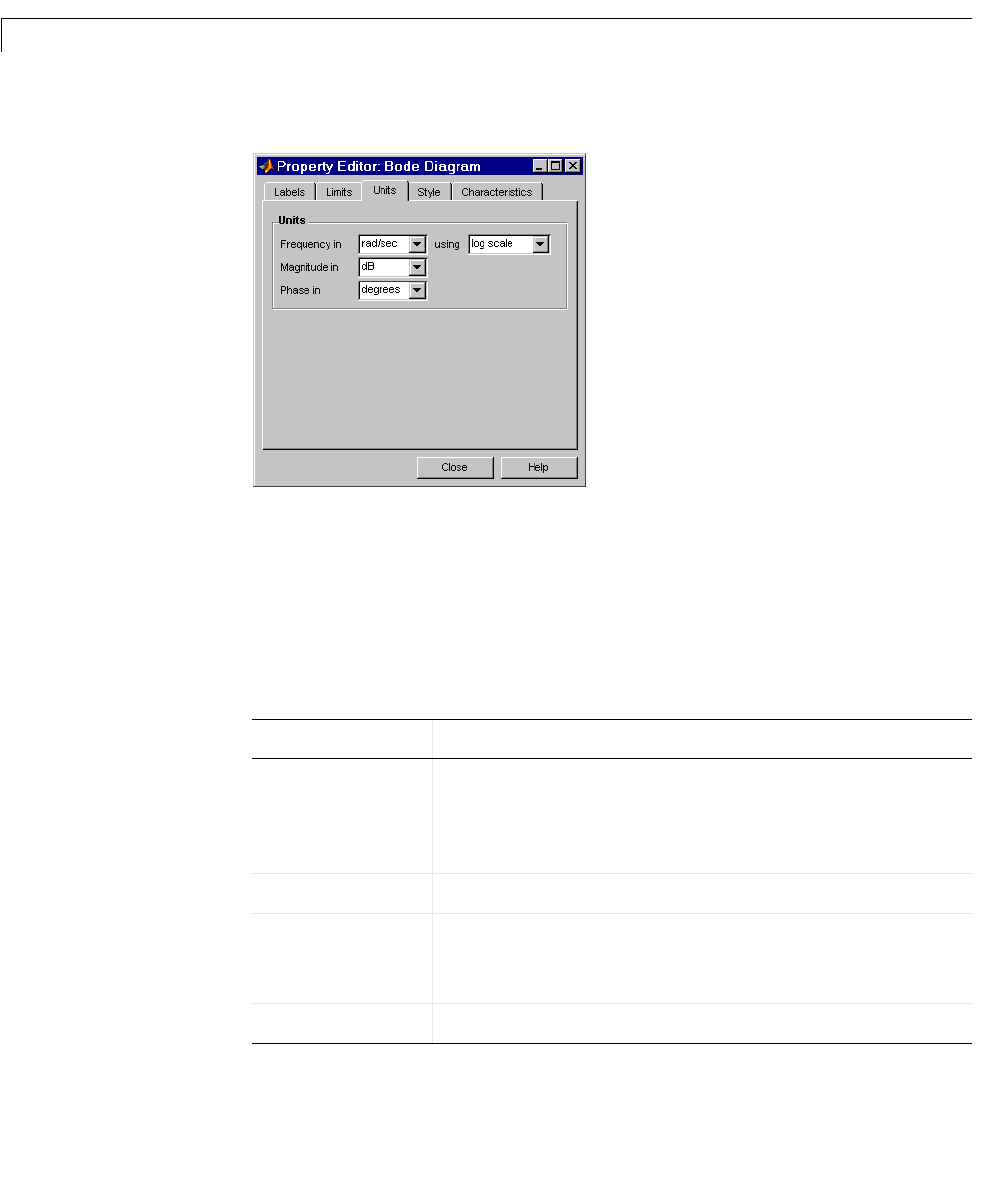

You can use the units page to change units in your response plot. The contents
of this page depend on the response plot associated with the editor.
Notethatforstepandimpulseresponses,therearenoalternateunitsavailable
(only time and amplitude are possible in the toolbox). This table lists the
options available for the other response objects. Use the menus to toggle
between units.
Table 9-1: Optional Unit Conversions for Response Plots
Response Plot Unit Conversions
Bode and
Bode Magnitude
Frequency in rad/sec or Hertz (Hz) using logarithmic or
linear scale
Magnitude in decibels (dB) or the absolute value
Phase in degrees or radians
Impulse None
Nichols Chart
and Nyquist
Diagram
Frequency in rad/sec or Hertz
Magnitude in decibels or the absolute value
Phase in degrees or radians
Pole/Zero Map Frequency in rad/sec or Hertz
