Property Editor
Note Click on the page tabs below to get help on pages in the Property
Editor.

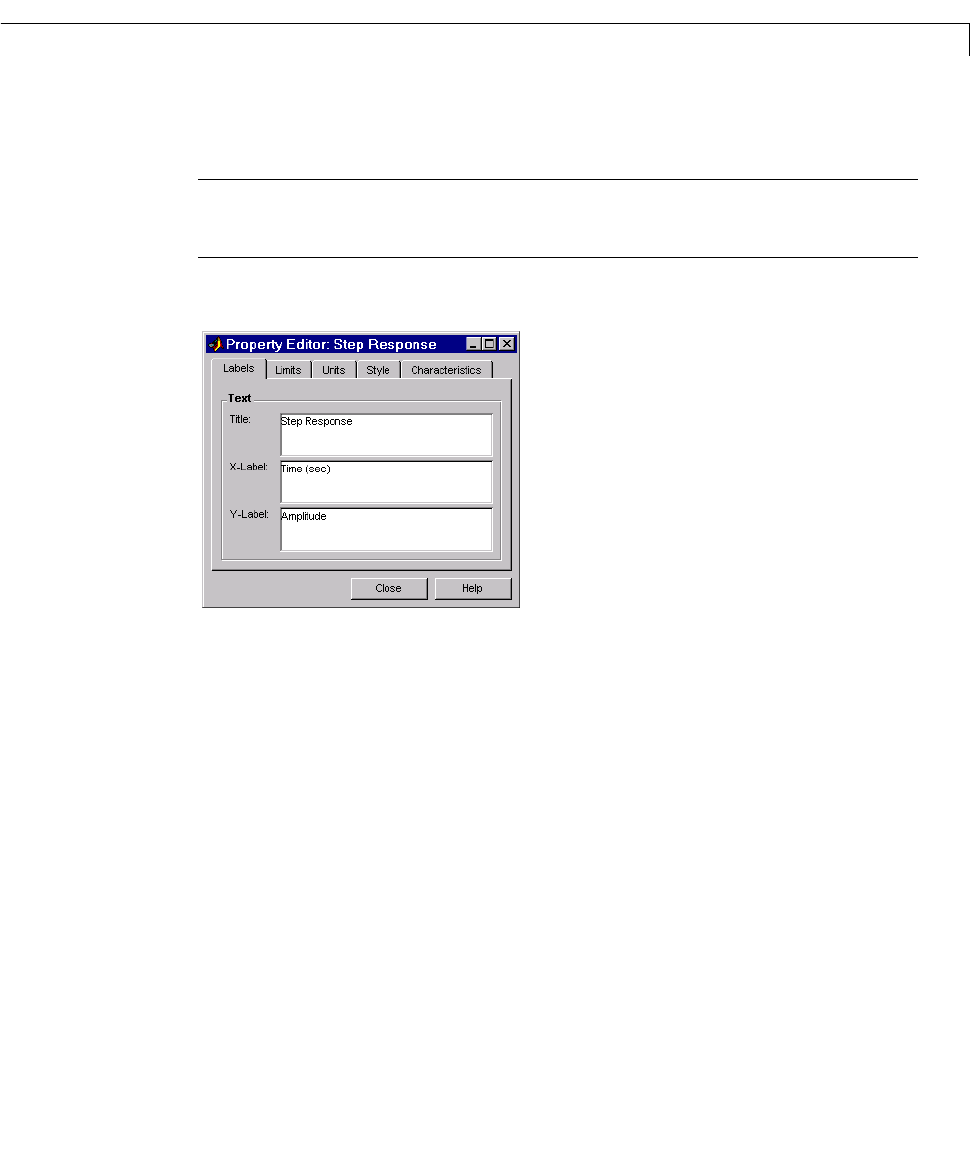

This figure shows the
Property Editor for this step response.
Figure 9-2: The Property Editor for the Step Response
In general, you can change the following properties of response plots:
•
Labels — Titles and X- and Y-labels
•
Limits —NumericalrangesoftheXandYaxes
•
Units — Where applicable (e.g., rad/sec to Hertz). If you cannot customize
units,asisthe case with stepresponses, the Property Editor will displaythat
no units ar available for the selected plot.
•
Style — Show a grid and adjust font properties, such as font size, bold and
italics
•
Characteristics — Where applicable, these include peak response, settling
time, phase and gain margins, etc. Plot characteristics change witheachplot
response type. The Property Editor displays only the characteristics that
make sense for the selected response plot. For example, phase and gain
margins are not available for step responses.
