9 Customizing Response Plot Properties
9-2
The lowest level of “The Property and Preferences Hierarchy” is setting
response plot properties. If you have created a response plot, there are two
ways to open the Property Editor:
•Double-click in the plot region
•Select
Properties from the right-click menu
Before looking at the Property Editor, open a step response plot using this
commands.
load ltiexamples
step(sys_dc)
This creates a step plot. Select Properties from the right-click window. Note
that when you open the
Property Editor, a black dashed box appears around
the step response, as this figure shows.

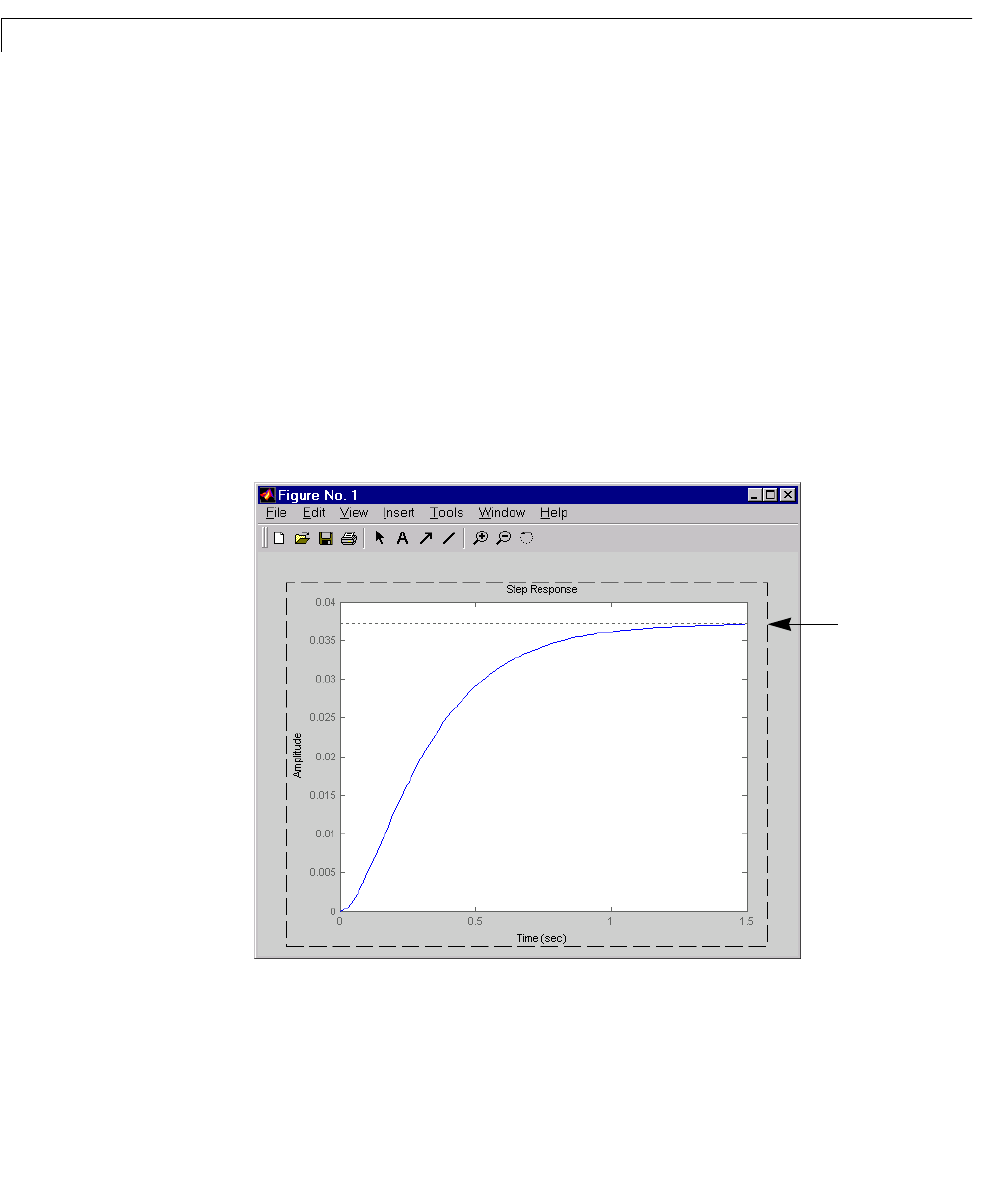

Figure 9-1: A SISO System Step Response
The dashed line
indicates that the
Property Editor is
active for this plot.
