7-5

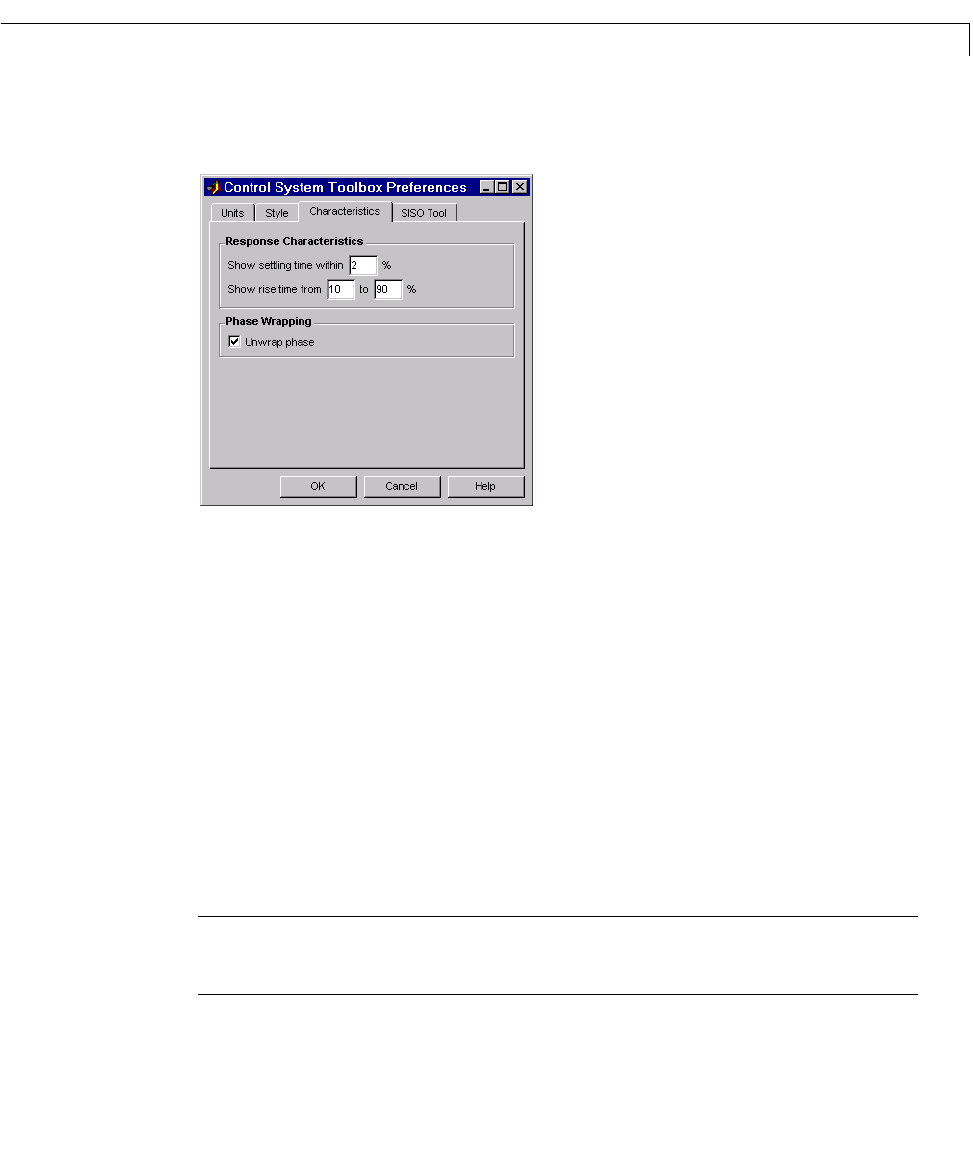

The Characteristics page has selections for response characteristics and phase
wrapping. This figure shows the Characteristics page with default settings.
The following are the available options for the Characteristics page:
•
Response Characteristics:
- Specify settling time tolerance — You can set the threshold of the settling
time calculation to any percentage from 0 to 100%. The default is 2%.
- Specify rise time boundaries — The standard definition of rise time is the
time it takes the signal to go from 10% to 90% of the final value. You can
choose any percentages you like (from 0% to 100%), provided that the first
value is smaller than the second.
•
Phase Wrapping — By default, the phase is not wrapped. Wrap the phrase
by unchecking this box. If the phase is wrapped, all phase values are shifted
such that their equivalent value displays in the range [-180°, 180°).
SISO Tool Page
Note Click on the page tabs below to get help on pages in the Control System
Toolbox Preferences editor.
