Assembly Instructions

Page 6 Page 7

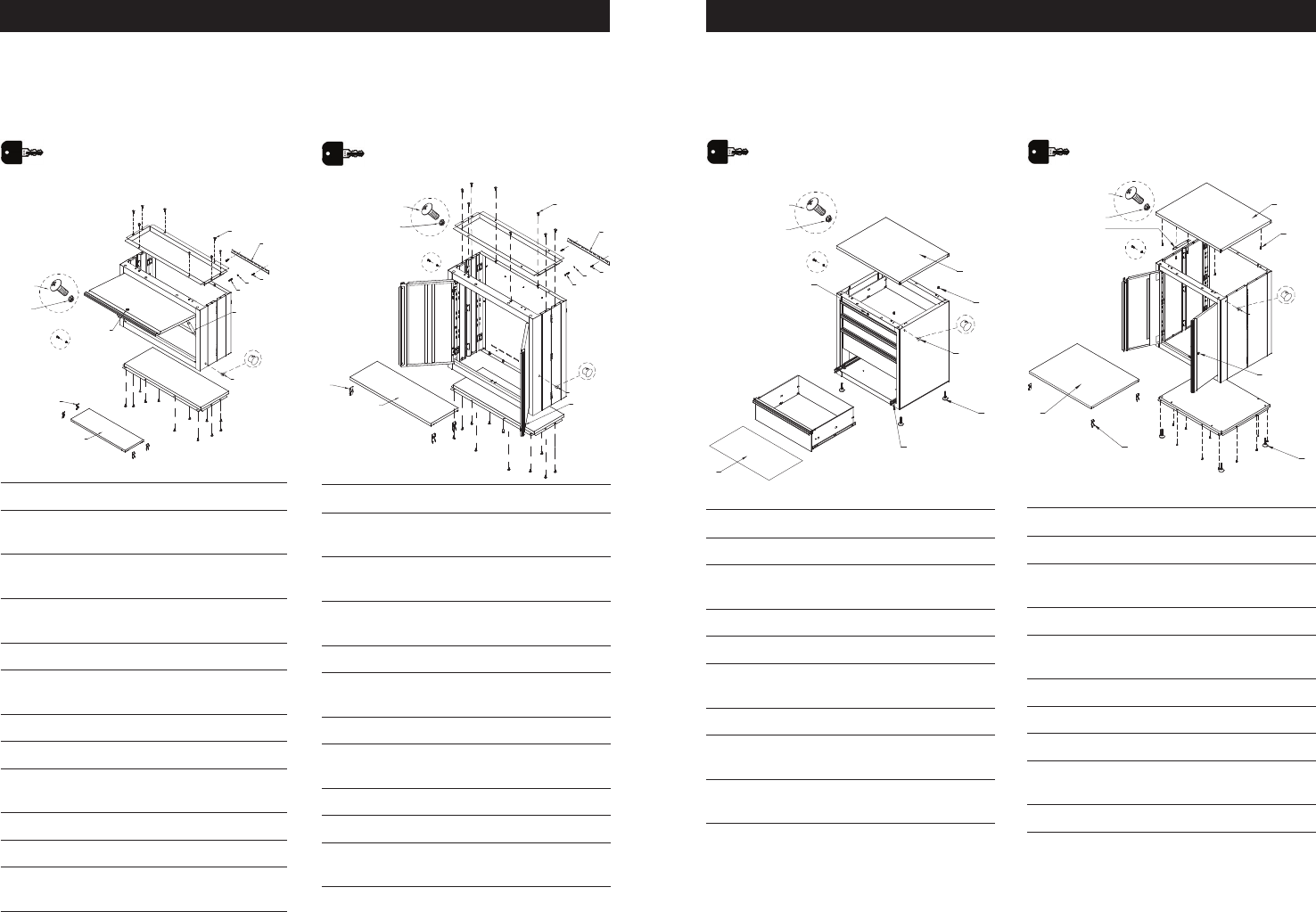

PARTS LIST
The keys are placed
inside the cabinet.
1
2
3
4
5
6
1
11
7
8
9
10
Ref# Description Part# Qty
1 M6 x 16 Phillips
Head Bolt
320174 21 pcs
2 Mounting
Bracket
233958 1 pc
3 M6 x 40 Hex
Tapping Screw
320328 2 pcs
4 Washer 324050 1 pc
5 M6 x 65 Hex
Tapping Screw
320316 1 pc
6 Gas Strut 303002 2 pcs
7 End Cup 314195 2 pcs
8 Lock and Key
(001)
304075 1 pc
9 Shelf 233955 1 pc
10 Shelf Support 226078 4 pcs
11 M6 Hex
Flange Nut
323085 1 pc
The keys are placed
inside the cabinet.
1
7
8
2
3
4
5
6
9
1
10
Ref# Description Part# Qty
1 M6 x 16 Phillips
Head Bolt
320174 21 pcs
2 Mounting
Bracket
233958 1 pc
3 M6 x 40 Hex
Tapping Screw
320328 2 pcs
4 Washer 324050 1 pc
5 M6 x 65 Hex
Tapping Screw
320316 1 pc
6 End Cup 314195 2 pcs
7 Lock and Key
(001)
304075 1 pc
8 Shelf 233955 1 pc
9 Shelf Support 226078 4 pcs
10 M6 Hex
Flange Nut
323085 1 pc
For service regarding parts, assembly or warranty information, please call: 1-800-459-4409.
1-DOOR WALL CABINET 2-DOOR WALL CABINET
These bolts
and nuts are
used to secure
the sides of
the cabinets
together
for a better
appearance.
These bolts
and nuts are
used to secure
the sides of
the cabinets
together
for a better
appearance.
PARTS LIST
The keys are placed
inside the cabinet.
5
4
2
6
1
7
3
2
8
Ref# Description Part# Qty
1 Work Top 116219 1 pc
2 M6 x 16 Phillips
Head Bolt
320174 5 pcs
3 End Cup 314195 2 pcs
4 Adjustable Feet 110 06 8 4 pcs
5 Slide Set 300176-
300177
4 pcs
6 Drawer Liner 551793 4 pcs
7 Lock and Key
(001)
304075 1 pc
8 M6 Hex
Flange Nut
323085 1 pc
For service regarding parts, assembly or warranty information, please call: 1-800-459-4409.
The keys are placed
inside the cabinet.
1
2
3
4
5
7
6
2
8
9
Ref# Description Part# Qty
1 Work Top 116219 1 pc
2 M6 x 16 Phillips
Head Bolt
320174 21 pcs
3 End Cup 314195 2 pcs
4 Lock and Key
(001)
304075 1 pc
5 Adjustable Feet 110 06 8 4 pcs
6 Shelf Support 226078 4 pcs
7 Shelf 116214 1 pc
8 M6 Hex
Flange Nut
323085 1 pc
9 Bracket 234542 2 pcs
4-DRAWER BASE CABINET 2-DOOR BASE CABINET
These bolts
and nuts are
used to secure
the sides of
the cabinets
together
for a better
appearance.
These bolts
and nuts are
used to secure
the sides of
the cabinets
together
for a better
appearance.
Not all parts are available under warranty.
Those parts not available may be purchased.
Not all parts are available under warranty.
Those parts not available may be purchased.
