Assembly Instructions

Page 18 Page 19

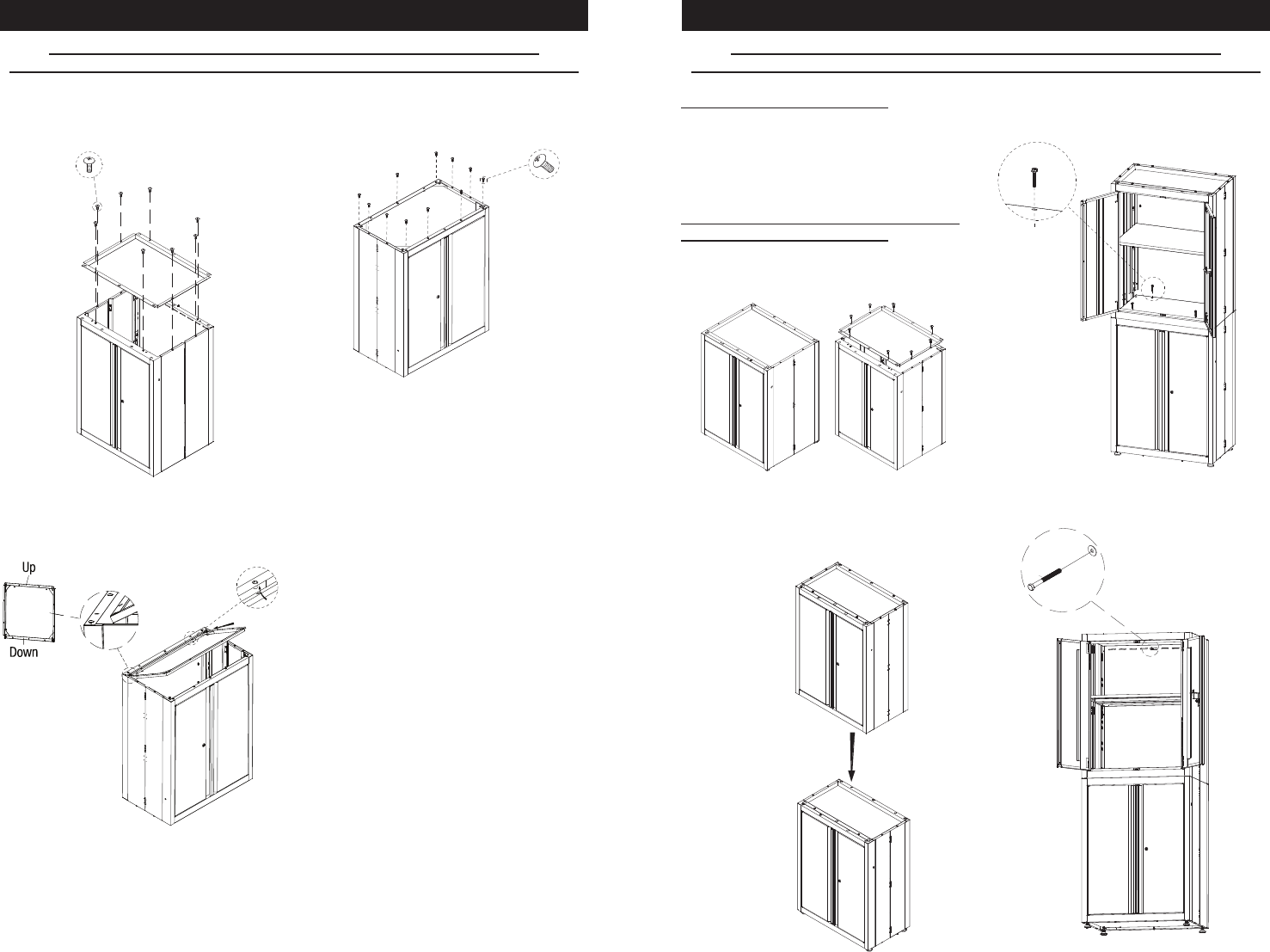

ASSEMBLY AND OPERATION
FOR THE TOP CABINET, ATTACH THE
TOP PANEL TO THE CABINET USING
EIGHT M6 X 16 PHILLIPS HEAD BOLTS.
Turn the cabinet over and assemble the
bottom panel as shown below.
TILT THE BOTTOM PANEL ONTO THE
BOTTOM OF THE CABINET.
INSERT THE LIP OF THE BOTTOM
PANEL INTO THE SLOT ON THE BACK
OF THE CABINET, MAKING SURE THAT
THE HOLES ALIGN.
Assembly is VERY EASY, however there are a few key steps that must be followed.
THESE KEY STEPS ARE HIGHLIGHTED IN BOLD CAPS. FOLLOW THESE TO EXPEDITE ASSEMBLY.
Attach the bottom panel to the cabinet
using eleven M6x16 Phillips head bolts.
ASSEMBLY AND OPERATION
STACKING CABINETS REVIEW
To stack two cabinets, you first need to
assemble two cabinets.
BOTTOM CABINET (A): Install the
bottom panel, adjustable feet and shelf.
PLACE THE TOP PANEL IN PLACE.
DO NOT USE BOLTS, THEY WILL
INTERFERE WITH STACKING.
TOP CABINET (B): Install the top panel,
bottom panel and shelf.
Place your top cabinet (B) on top of your
bottom cabinet (A).
A B
B
A
Assembly is VERY EASY, however there are a few key steps that must be followed.
THESE KEY STEPS ARE HIGHLIGHTED IN BOLD CAPS. FOLLOW THESE TO EXPEDITE ASSEMBLY.
CONNECT THE CABINETS USING FOUR
LONG M6 X 35 HEX FLANGE BOLTS.
Fasten the top cabinet to the wall using one
M6 x 65 hex tapping screw.
A
B
A
B
