OPERATION
CHARGING A HOT
BATTERY PACK
If the battery pack is above the normal
temperature range, the red LED will illuminate
and the green LED will be off. When the
battery pack cools down to approximately
104°F, the charger will automatically begin
charging.
CHARGING A COLD
BATTERY PACK
If the battery pack is below the normal
temperature range, the red LED will
illuminate and the green LED will be off.
When the battery warms to a temperature
of more than 41°F (5°C), the charger will
automatically begin charging .

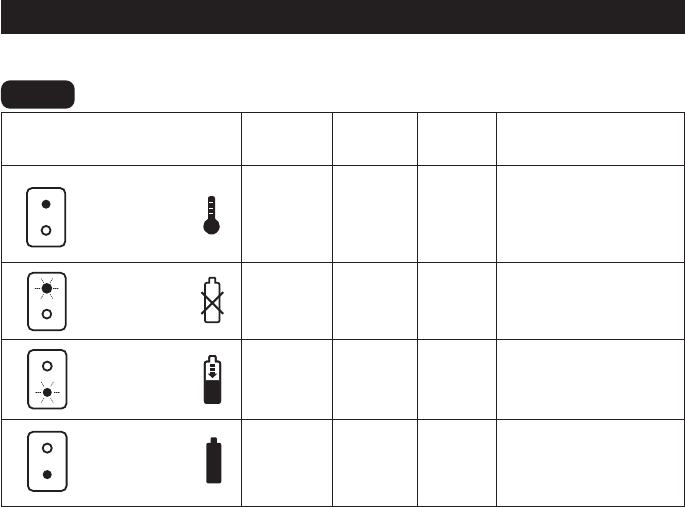

LED FUNCTIONS OF CHARGER (FIG. 4)
LED INDICATOR
BATTERY
PACK
RED
LED
GREEN
LED
ACTION
HI / LO TEMP.
Hot/Cold
battery
On Off
Fast charge will begin
when battery returns
to between 41°F (5°C)
and 104°F (40°C)
DEFECTI VE
BATTERY
Defective Flashing Off
Battery pack or
charger is defective
BATTERY
CHARGING
Charging Off Flashing Charging
BATTERY
FULL
Fully
charged
Off On
Charging is
complete
DEFECTIVE BATTERY
If the charger detects a problem, the red LED
will begin ashing and the green LED will be off.
1. If registering as defective, remove and
reinsert the battery pack in the charger.
If the LED status indicates “defective”
a second time, try to charge a different
battery pack.
2. If a different battery pack charges
normally, dispose of the defective
battery pack (see Maintenance section).
3. If a different battery pack also indicates
“defective,” the charger may be defective.
FIG. 4
