Instruction manual

OPERATING INSTRUCTIONS
16
8 U.S. GALLONS (30.3 L) AIR COMPRESSOR 058-9316-0
Break-in procedure
1. Set the pressure switch (1) to the OFF
position
(fig E) .
2. Open the tank drain valve (1) by turning
it counter-clockwise to permit the air to
escape and prevent air pressure build-up
in the air tank during the break-in period
(fig F) .
3. Turn the air pressure regualtor knob (1)
counter-clockwise until it stops
(fig G) .
4. Plug in the power cord (1)
(fig H) .
Note: For best performance and reliable
starting, the air compressor should be plugged
into a dedicated circuit, as close as possible to
the fuse box or circuit breaker.
Note: A circuit breaker is recommended. If the
air compressor is connected to a circuit
protected by a fuse, use dual element time
delay fuses (type “T” only).
MC-589316-13

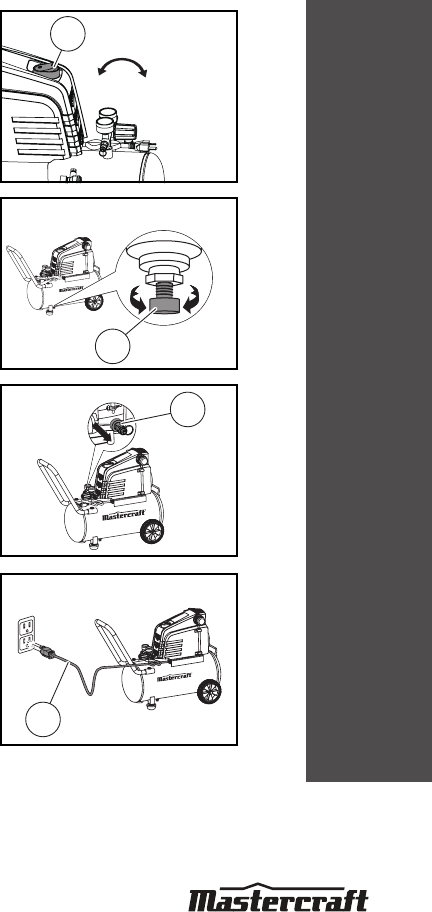

fig E
1
MC-589316-14
fig F
1
MC-589316-15
fig G
1
MC-589316-16
fig H
1
