Operating Guide

NEVER LEAVE A FAN UNATTENDED WHILE OPERATING

OR WHILE CONNECTED TO A POWER SOURCE

1. Inspect your fan before each use. Check all wires and

extension cords, following the procedure outlined on

Page 1 (Safety Information).

2. After use, always be sure fan’s Power Switch is in the

OFF position before unplugging. Use cord wrap (see

page 4 Item #5) to keep cord off the ground when

transporting fan.

Maintenance and Storage

1. Remove screws from Rear Guard and tilt wheel

(Figure 2).

2. Loosen motor nuts, and motor safeguards (located

above and below motor).

3. Remove belt to replace, or adjust motor to tighten belt

(Figure 3).

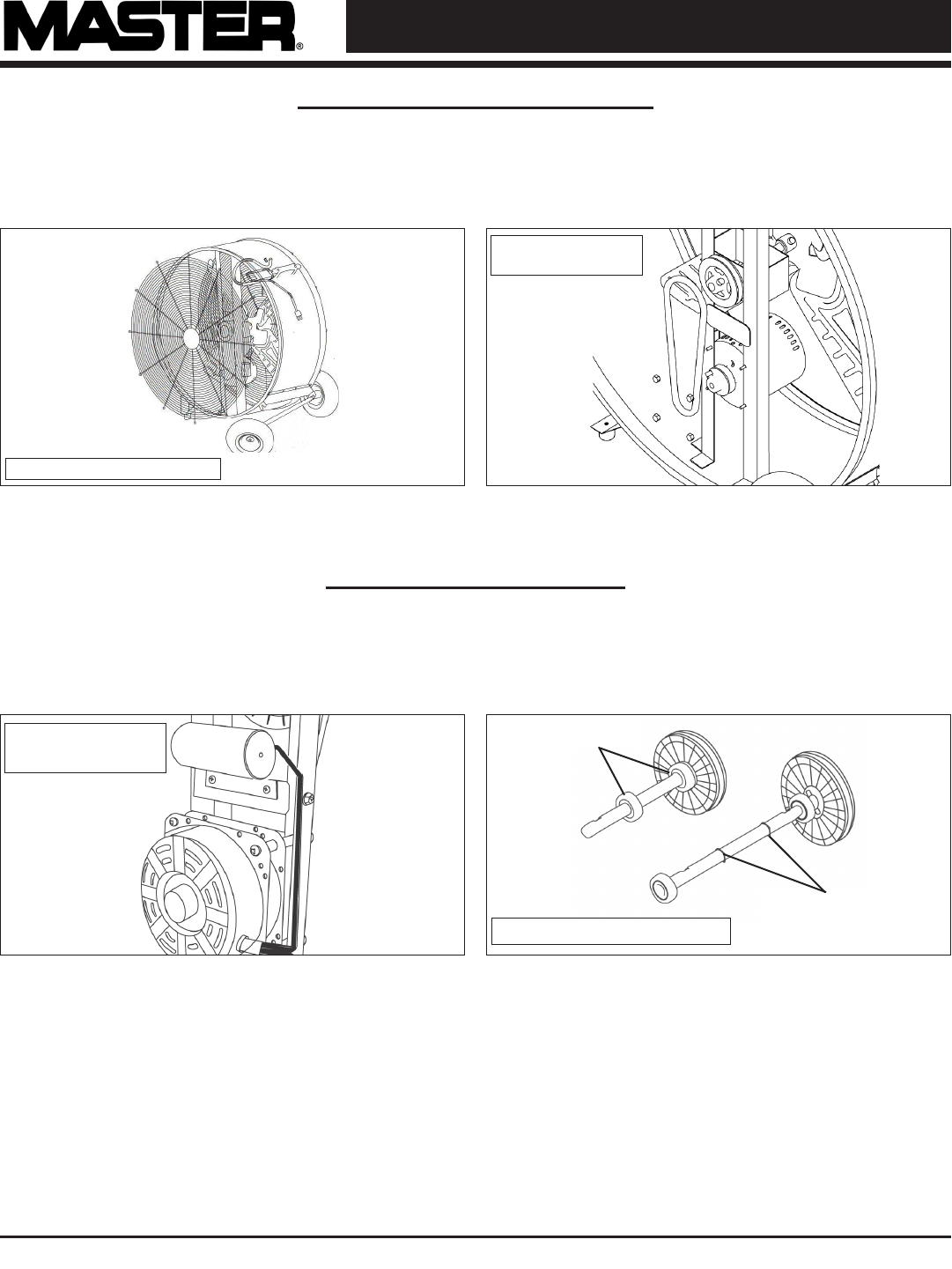

Figure 2: Removing Guard

Figure 3:

Adjusting Fan Belt

Belt Tightening / Replacement

Figure 4:

Capacitor Assembly

Bearing E-clips

Bearings

Figure 5: Fan Shaft Assembly
