Assembly Instructions

Model No. U-HL6080W

IMPORTANT

If you have difculty assembling your Ariel Table - MODEL # U-HL6080W

or need customer service assistance. Please call:

Martin Universal Design, Inc. Customer Service Hot Line at 1-313-895-0700.

If you need additional parts, it is not necessary to contact your dealer,

our Customer Service Rep. will forward them to you immediately.

Martin Universal Design, Inc. • Detroit, MI 48208 USA

Tel: 1-313-895-0700 • E-mail: custservmud@gmail.com

www.MartinUniversalDesign.com • Made in China

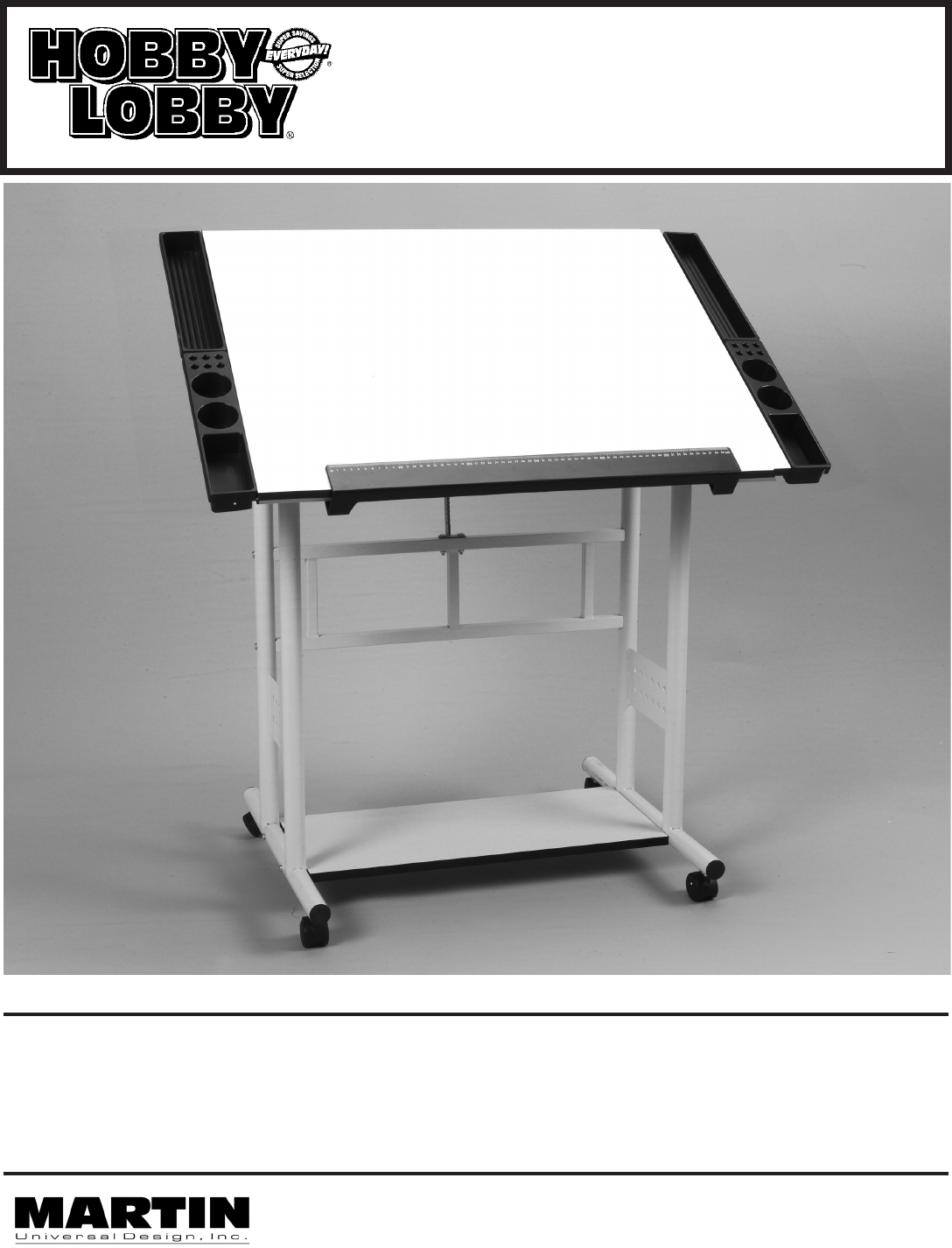

Ariel Table

UPC 080031055002

2/28/11- RPI

Summary of content (6 pages)

PAGE 1
Ariel Table Assembly Instructions Model No. U-HL6080W UPC 080031055002 IMPORTANT If you have difficulty assembling your Ariel Table - MODEL # U-HL6080W or need customer service assistance. Please call: Martin Universal Design, Inc. Customer Service Hot Line at 1-313-895-0700. If you need additional parts, it is not necessary to contact your dealer, our Customer Service Rep. will forward them to you immediately. Martin Universal Design, Inc.
PAGE 2
Ariel Table Hardware Parts List Part A. 1 ea. Left Leg Part B. 1 ea. Right Leg Part C. 1 ea. Cross Support Part D. 1 ea. Ruler Support Bar Part E. 1 ea. Base Shelf Part F. 1 ea. Table Top Part G. 1 ea. Ruler Part H. 1 ea. Tilt Mechanism Part I. 2 ea. Side Tray A Part J. 2 ea. Side Tray B Part K. 2 ea. Castors Part L. 2 ea. Locking Castors Part M. 4 ea. CAM Locks Part N. 2 ea. Plastic Caps Part O. 8 ea. Side Tray Clips Part P. 2 ea. Top Brackets Part Q. 8 ea. 6x55mm Hex Part R. 2 ea.
PAGE 3
Ariel Table Assembly Instructions: Step 1. Attach Castors to Left and Right Legs Insert 1 ea. Locking Castor (Part L) into each of the two front holes found on the bottom of each leg (Part A & B) A Insert 1 ea. Castor (Part K) into each of the two rear holes found on the bottom of each leg (Part A & B) L B K L See FIG 1 FIG 1 Step 2. Insert Cam Locks into Base Shelf Insert 4 ea.
PAGE 4
Ariel Table Assembly Instructions: R Step 4. Attach Table Top Tilt Mechanism Attach Tilt Mechanism (part H) to Cross member (part C) in position as seen in FIG 4. Secure by using 2 ea. Hex Bolts (part R) and 2 ea. Nylon Nuts (part S). Tighten to secure with supplied wrench (part W) See FIG 4 FRONT END OF TABLE H S C REAR END OF TABLE FIG 4 Step 5. Attach Ruler Support Bar D Begin by laying Table Top (part F) face down on protected hard floor (like a carpeted floor).
PAGE 5
Ariel Table Assembly Instructions: Step 6. Attach Ruler to Ruler Support Bar FIG 6 Clip/Snap Ruler (part G) onto Ruler Support Bar (Part D). See FIG 6. G RULER P Step 7. Attach Table Top Brackets Attach 1 ea. Table Top Brackets (part P) to each left & right leg by inserting bracket rod into hole found on inside edge of the legs top support bar. See FIG 7. FIG 7 Step 8.
PAGE 6
Ariel Table Assembly Instructions: I Step 9. Assembling 2 Side Trays into one long tray. (Optional) FIG 9 If you would like one long side tray, you must clipp 2 Side Trays (part I & J) together as shown in FIG 9. OPTIONAL CHOICES: If you would like to use two of the same Side Trays together you may. As shown in FIG 9B and 9C J OR OR I J I J FIG 9B Step 10.
