Freeze-dryer EPSILON 1-4 LSCplus

Freeze-dryer EPSILON 2-4 LSCplus

5 Set-up and connection

Version 04/2014, Rev. 1.4 of 09/12/2014 • sb

Translation of the original operating manual

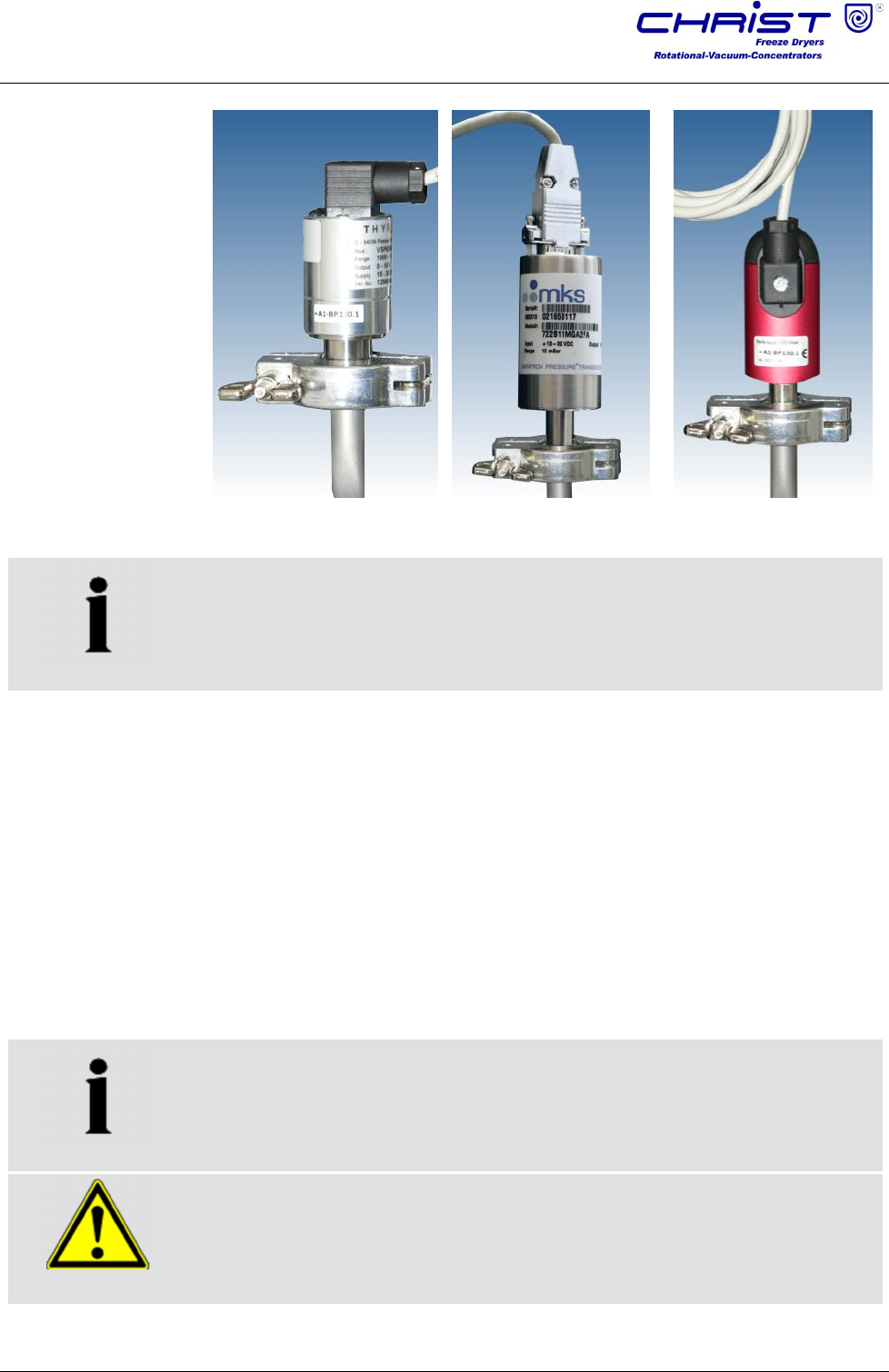

Thyracont VSP62/63

MKS 722B

Pfeiffer TPR 280/281

Fig. 16: Installed vacuum sensors of different manufacturers

NOTE

The vacuum sensor comes supplied in a calibrated state.

After power-on, the vacuum sensor needs a few minutes to reach its

operating temperature.

Pos: 101 /01 0 Uni v ersal mod ule/L eerz ei le @ 0\m od_ 120 211624 450 0_0. doc x @ 11 4 @ @ 1

Pos: 102 /20 0 Ch rist/3 61 G T-BA L abo r-Pil ot (P ROJE KTE)/E psil on S ta ndard/0 50 Auf s tellun g u nd Ansc hlus s/0 50-005 0 Be dien ung der B elade tür E psil on - Übe rsch rift- -- ------ -- ----- ----- ------ -- ----- ---- @ 25\ mod_140 498 462 812 8_6 8.docx @ 1857 21 @ 2 @ 1



5.4 Operation of the loading door

Pos: 103 /20 0 Ch rist/3 61 G T-BA L abo r-Pi lot (PROJ EK TE)/Epsi lo n Sta nda rd/0 50 Aufs tel lun g und A nsc hluss/ 050- 005 1 Be dien ung der B elade tür E psil on Text @ 2 5\m od_1 404984 629 322 _68. docx @ 18 573 5 @ @ 1



After the drying chamber has been loaded, the loading door is closed and

pressed tightly against the flange of the drying chamber with the aid of the

locking handle. The locking handle is now in a perpendicular position with

regard to the door edge (see figure). When a vacuum builds up inside the

drying chamber during the drying process, the loading door will be pulled

closer to the flange of the drying chamber. As a result, the locking handle

will be loosened and it will hang down loosely.

NOTE

If the locking handle does not hang down perpendicularly when the loading

door is closed, it can be readjusted. To do so, loosen the hexagon socket

screw (size 8), readjust the locking handle, and retighten the screw.

WARNING

Do not tighten the door handle when there is a vacuum inside the drying

chamber. During the aeration, the pressure on the locking handle will

increase to such an extent that the loading door may be damaged beyond

repair!
