2 Layout and mode of operation
Pos: 18 / 200 Chri st /36 0 GT -BA La bor -Pi lot (S TA NDA RDMOD ULE )/ 020 A ufb au u nd Wirk ungs w eise/ 020 -00 10 Au fba u de r Ge frie rtr ocknu ngsa nl ag e----- -- ----- --- ----- --- ----- -- ------ -- ----- ----- - @ 2 5\m od_ 140 4983 236 941_68 .doc x @ 18 303 3 @ 2 @ 1

2.1 Layout of the freeze-dryer
Pos: 19 / 200 Christ /36 1 GT -BA La bor -Pi lot (PR OJEK TE )/Eps ilon 2- 10D LSC pl us Sta nda rd/0 20 Auf bau und W irku ngswei s e/02 0-0010 -00 10 Fu nkti ons - und Be di enel ement e E 2-10D @ 25\ mod_ 140 498 487 9134_6 8.doc x @ 1 863 51 @ 3 @ 1


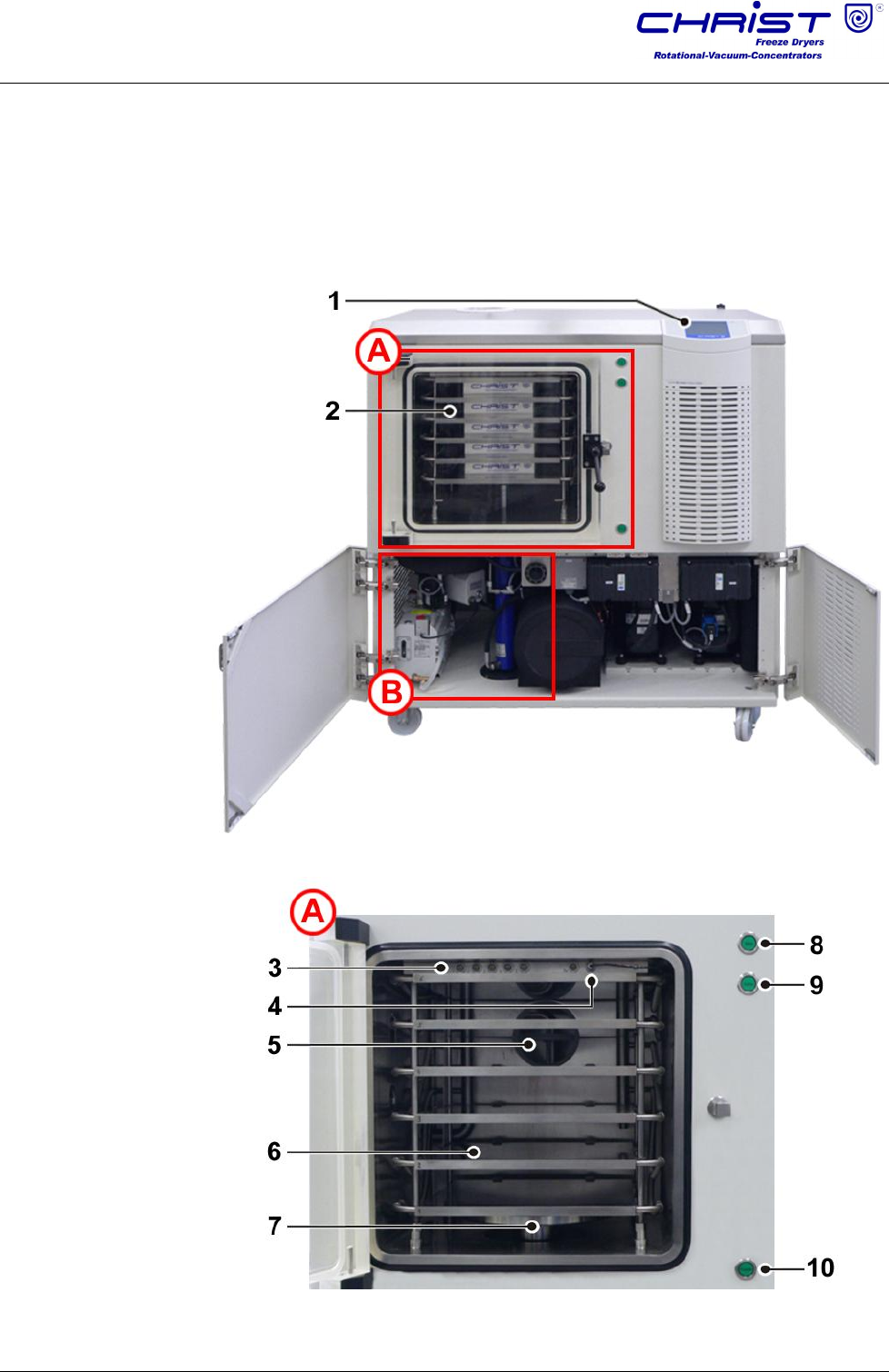

2.1.1 Functional and operating elements
1 Control system
2 Drying chamber with
loading door
Fig. 1:
Front of the freeze-dryer
3 Connections for the
product sensors
4 Connection for the
intermediate valve
5 Intermediate valve
6 Shelves
7 Hydraulic dome with
bellows
8 Push-button "Up"
(hydraulic system)
9 Push-button "Down"
(hydraulic system)
10 Push-button
"Release” for two-
hand control of the
hydraulic system
Fig. 2:
Detailed view A – drying
chamber
