User's Manual

P 24 of 29
8880-610_200_c900 fl-tg wireless monitor user manual
Rev: 2
 #1 Phillips Screwdriver
For pc board installation in housing.
The device mounting screws can be change to meet your product overall
requirements.
12 Block Diagram
12.1 Wireless Monitor
The components that make up a wireless monitor are depicted in Figure 26.

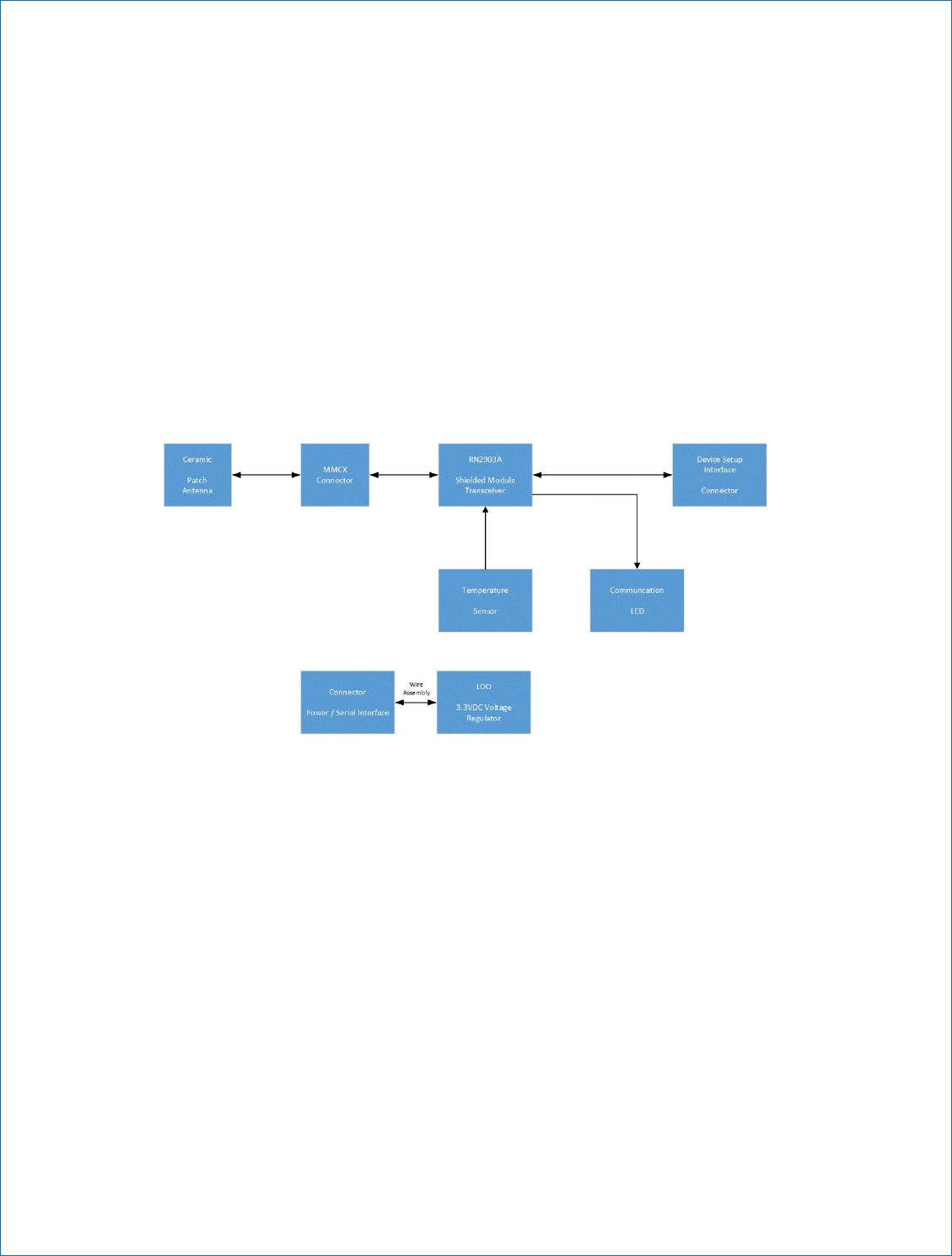

Figure 26: Wireless Monitor Block Diagram
12.2 Architecture Overview
A system can consist of the following major component.
