8880-610_200_c900 fl-tg wireless monitor user manual
Rev: 2
9.3 Mechanical
Dimensions
2.55 W x 3.89 H x 1.87 L inches
Excludes ground tab
Approximate Weight
8 Oz. (226.8 Grams)
Power / Communication
Interface type
4 Wires
VCC Input (5V), Ground, Transmit, Receive

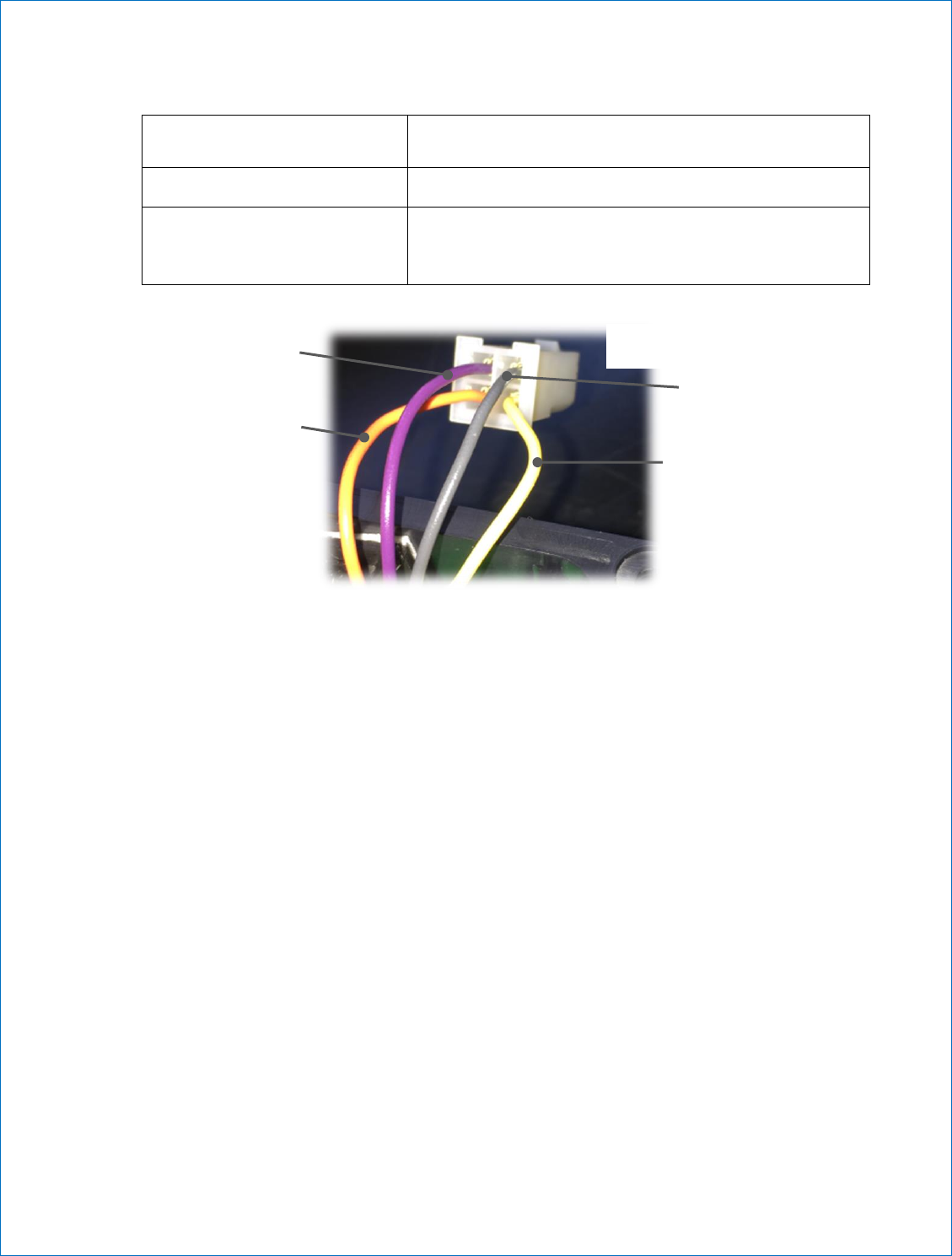

Figure 25: Wireless Monitor Input Interface Connector
Antenna RF Connector type: MMCX
Molex Connector Pn 0039013043
(Purple) Transmit
Ground (Yellow)
Receive (Gray)
(Orange) VCC In
