The next step is generally not require as the wireless monitor comes with the latest
firmware code loaded.
How to load firmware in radio. Click the > Advanced tab, a warning window will pop
up, click > Yes to proceed.

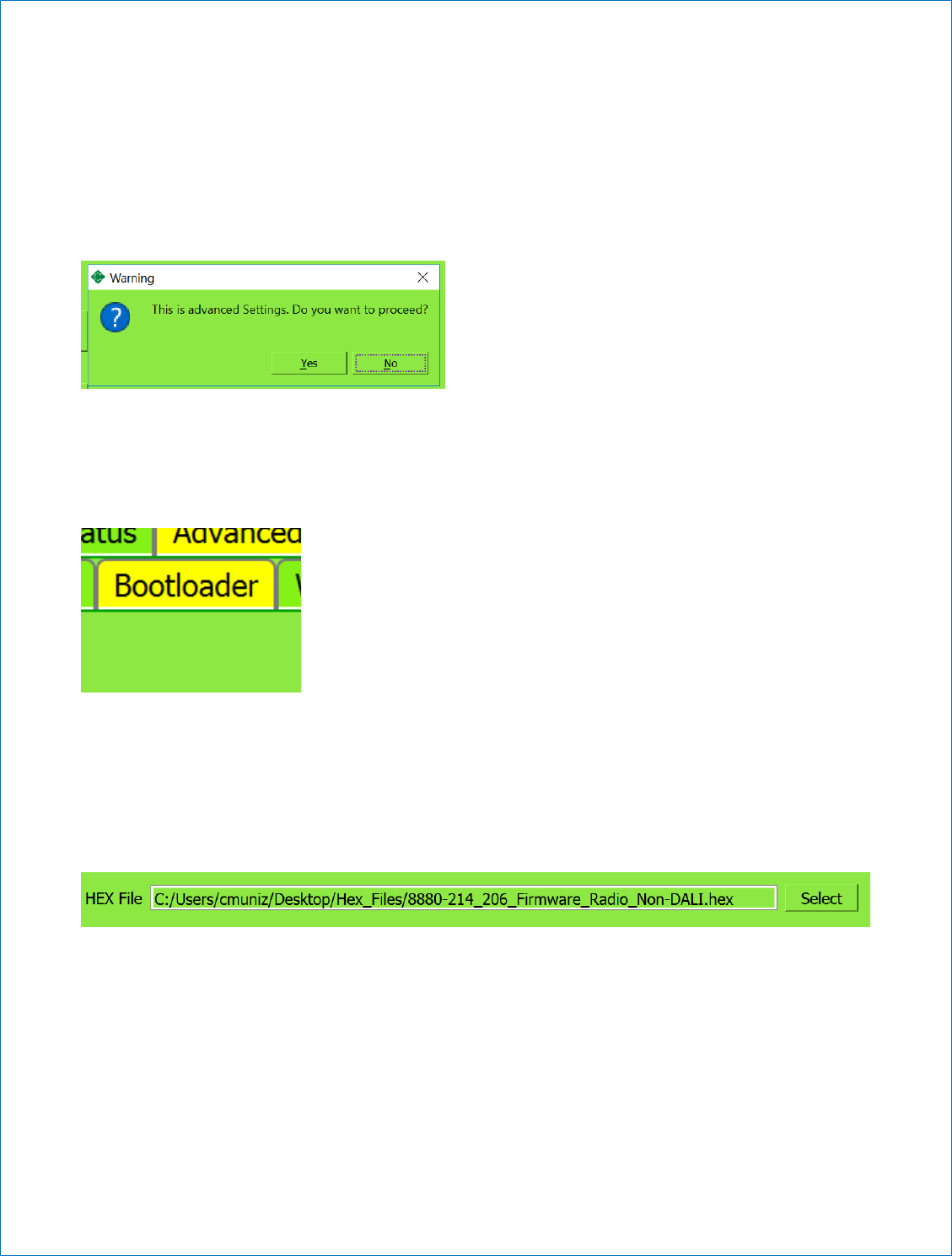

Figure 12: Advanced Tab Warning Window
Click the > Bootloader tab.
Figure 13: Bootloader Tab Window
Get the latest hex file(firmware). Click the [Select] button. Filename cannot have
spaces.
Figure 14: Hex File Field Window
Next, click [Flash Boot Loader] button.
