User's Manual

P 10 of 29
8880-610_200_c900 fl-tg wireless monitor user manual
Rev: 2
1. Provision Tab: The Provision tab is to provision wireless monitor in which
has fields updated by electrician.
2. Status Tab: The Status tab is to check the firmware version and to report
back problems to engineer.
3. Advanced Tab: The Advanced tab is to load firmware upgrade and for a
Super User to make changes.
o Provision Tab
On the application provision tab, click the > Refresh button. The COM port that the
wireless monitor is connected to will appear on the left field.

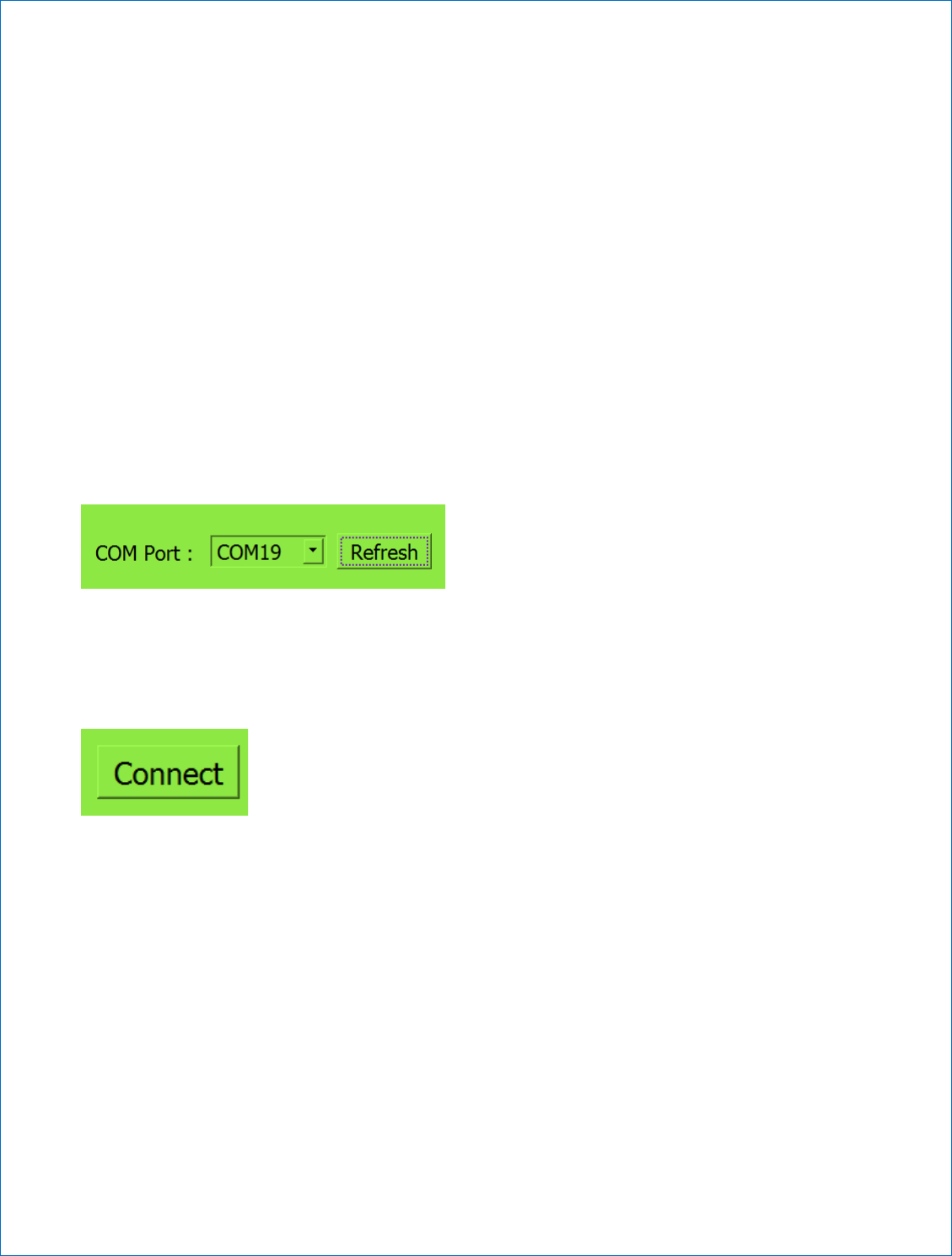

Figure 4: COM Port Field
Click the > Connect button.
Figure 5: Connect Button
Application will connect to the wireless monitor and display the MAC Address.
Confirm MAC Address is displayed which is unique identifier for every wireless
monitor.
