User Manual

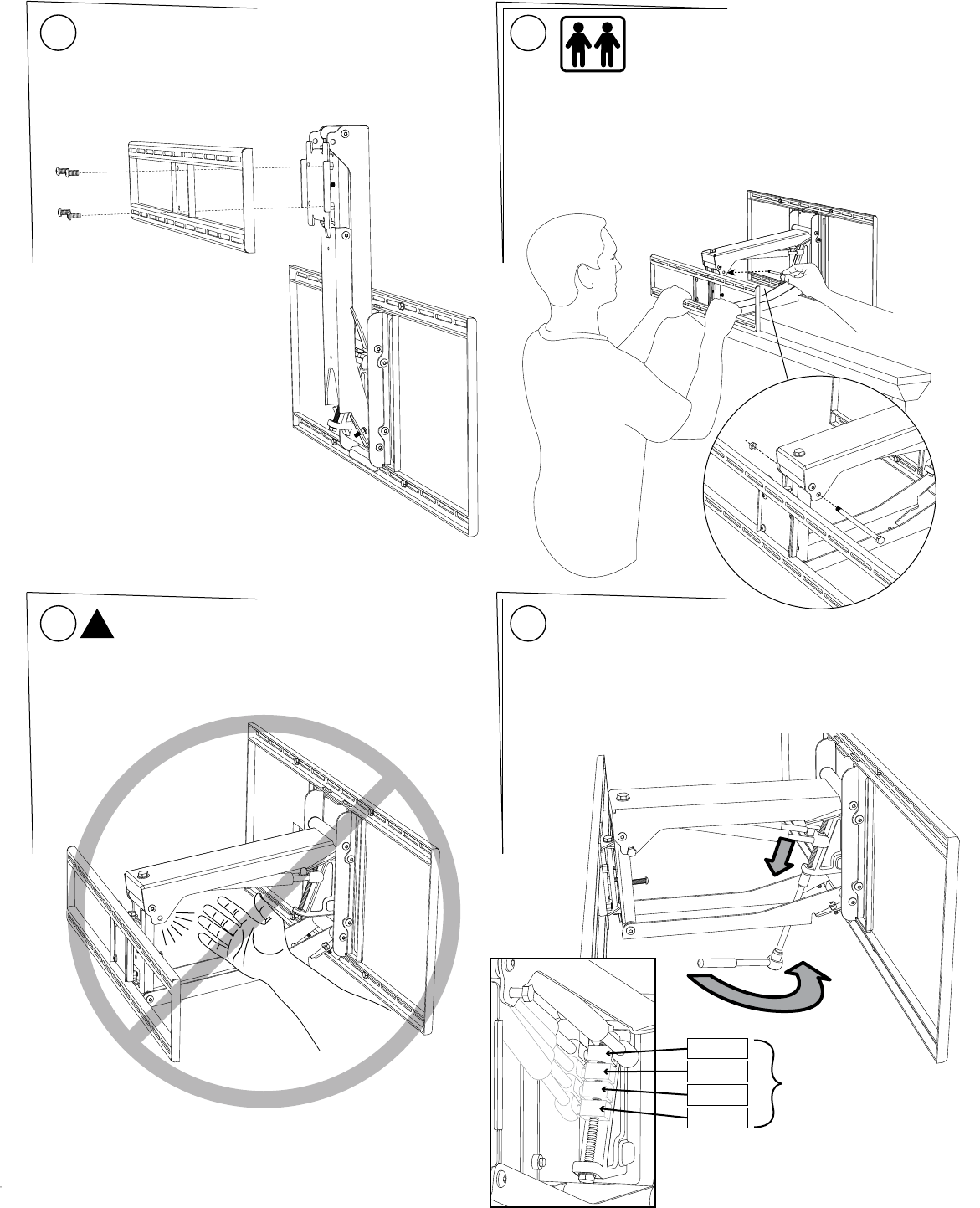

Install the TV Brace {33} to the Lifting Mechanism {35} Level the TV
Brace and tighten the 4 screws {14}.
26
28 29
!
WARNING:
Do Not put hands into Lifting Mechanism without the
Safety Bolt and Safety Nut installed. The power of the
Lifting Mechanism can cause bodily injury!
MantelMount MM700 PAGE 13
27
Firmly pull down the TV Brace until the Lifting Mechanism is
in a horizontal position. DO NOT HIT THE MANTLE!
The second person must insert the Safety Bolt {20}
through the Safety Hole in the upper arm and install the
Safety Nut {21}. Slowly release the TV Brace.
Lifting Mechanism should be held at horizontal position.
THIS STEP REQUIRES TWO PEOPLE
PRE-SET THE LIFTING FORCE:
Turn the main bolt CLOCKWISE (while looking at the head of the bolt
from underneath) as shown to pull the Gas Springs DOWN for heavy
TVs. Rotate the bolt the other way for less lifting force for lighter TVs.
See the diagram below for a Pre-Set estimate for the Gas Springs. The
lightest lifting force is at the top, and the heaviest is down just below
the middle of the bolt threads.
25 lbs
50 lbs
75 lbs
100 lbs
DO NOT adjust all the way to
the bottom. That position is
only to remove the Gas Springs.
Weight of TV
