294 Part Number 80-1479-3 7/10
S3300
x
x
x
x
x

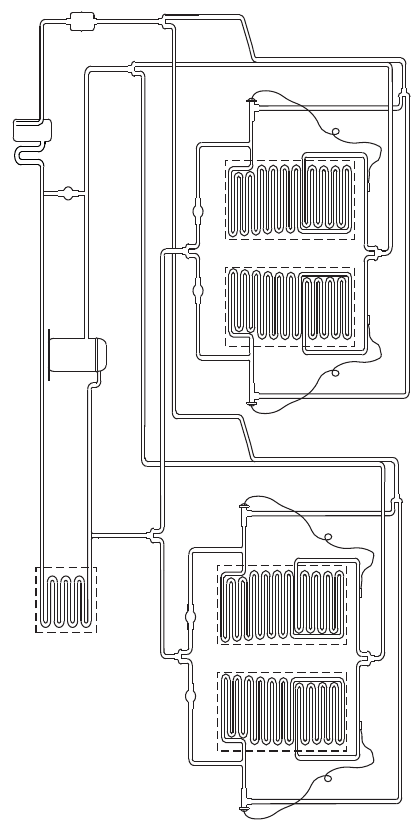

EVAPORATOR 1
EVAPORATOR 2
EVAPORATOR 3 EVAPORATOR 4
WATER-COOLED
CONDENSER
SCROLL
COMPRESSOR
RECEIVER
HARVEST PRESSURE
SOLENOID VALVE
HARVEST SOLENOID
VALVE
HARVEST SOLENOID
VALVE
HARVEST SOLENOID
VALVE
HARVEST SOLENOID
VALVE
EXPANSION
VALVE
EXPANSION
VALVE
EXPANSION
VALVE
EXPANSION
VALVE
HEAT
EXCHANGER
HEAT
EXCHANGER
DRIER
