Part Number 80-1479-3 7/10 293

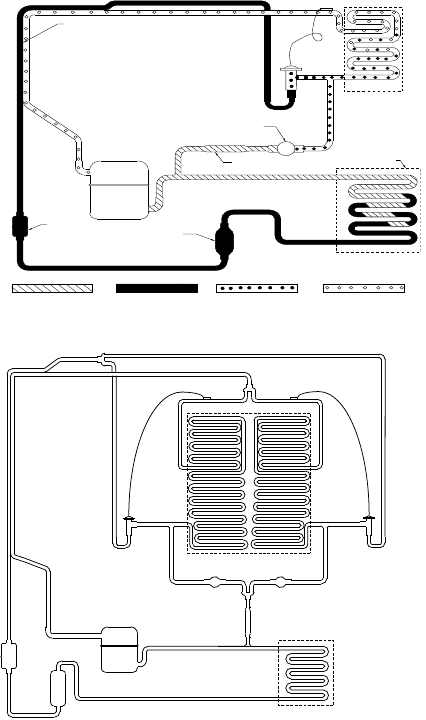

Refrigeration Tubing Schematics
SELF-CONTAINED AIR- OR
WATER -COOLED MODELS
S300/S320/S420/S450/S500/S600/S850/S1000/S1200
S1400/S1600/S1800
HEAT
EXCHANGER
EVAPORATOR
CONDENSER
COMPRESSOR
HOT GAS SOLENOID VALVE
AIR OR WATER
DRIER
STRAINER
RECEIVER
(WATER COOLED ONLY)
LOW PRESSURE VAPORLOW PRESSURE LIQUIDHIGH PRESSURE LIQUIDHIGH PRESSURE VAPOR
X
EXPANSION
VALV E
x
x
CONDENSER
COMPRESSOR
HEAT
EXCHANGER
RECEIVER
DRIER
EVAPORATOR
HARVEST
SOLENOID VALVE
STRAINER
HARVEST
SOLENOID VALVE
EXPANSION
VALVE
EXPANSION
VALVE
