Part Number 80-1479-3 7/10 291

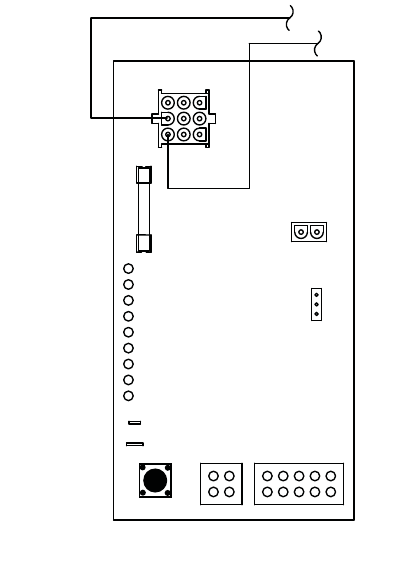

Single and Twin Evaporator With Test Button
N 115V
L2 208-230V
PRIMARY POWER
SUPPLY
AC LINE VOLTAGE
ELECTRICAL PLUG
MAIN FUSE
(7A)
AIR COMPRESSOR
(NOT USED ON
ALL MODELS)
WATER PURGE
ADJUSTMENT
CLEAN LIGHT (YELLOW)
LEFT BIN LIGHT (GREEN)
RIGHT BIN LIGHT (GREEN)
REMOTE BIN LIGHT (GREEN)
WATER PROBE LIGHT (GREEN)
ICE PROBE LIGHT (GREEN)
HARVEST LIGHT (RED)
SAFETY LIMIT 1 LIGHT (RED)
SAFETY LIMIT 2 LIGHT (RED)
ICE THICKNESS PROBE
(3/16" CONNECTION)
WATER LEVEL PROBE
AUTOMATIC CLEANING
SYSTEM PLUG
(AuCS)
DC LOW VOLTAGE
ELECTRICAL PLUG
{BIN SWITCH(ES)&
TOGGLE SWITCH}
(56)
(55)
SERVICE
MODE
