Part Number 80-1479-3 7/10 171
Self-Contained Charging Procedures
1. Be sure the toggle switch is in the OFF position.
Important
The ch arge is critical on all Mani towoc ice
machines. Use a scale to ensure the prop er
charge is installed.

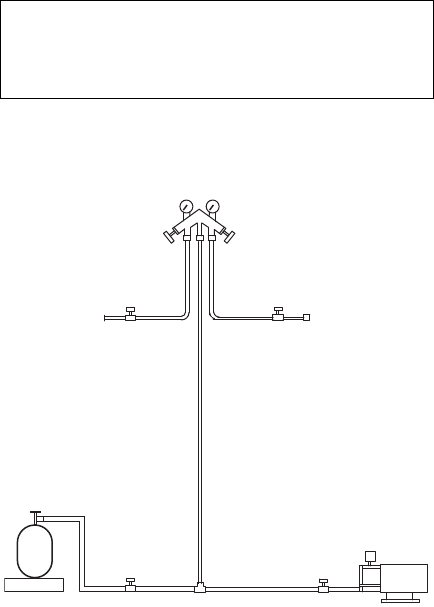

MANIFOLD SET
CLOSED
FRONTSEATED
SCALE
VACUUM PUMP/
RECOVERY UNIT
OPEN
CLOSED
LOW SIDE
SERVICE
VALVE
HIGH SIDE
SERVICE
VALVE
BACKSEATED
OPEN
REFRIGERANT
CYLINDER
CHARGING CONNECTIONS
