Section 4 Maintenance
Part No. 80-1640-3 4-11

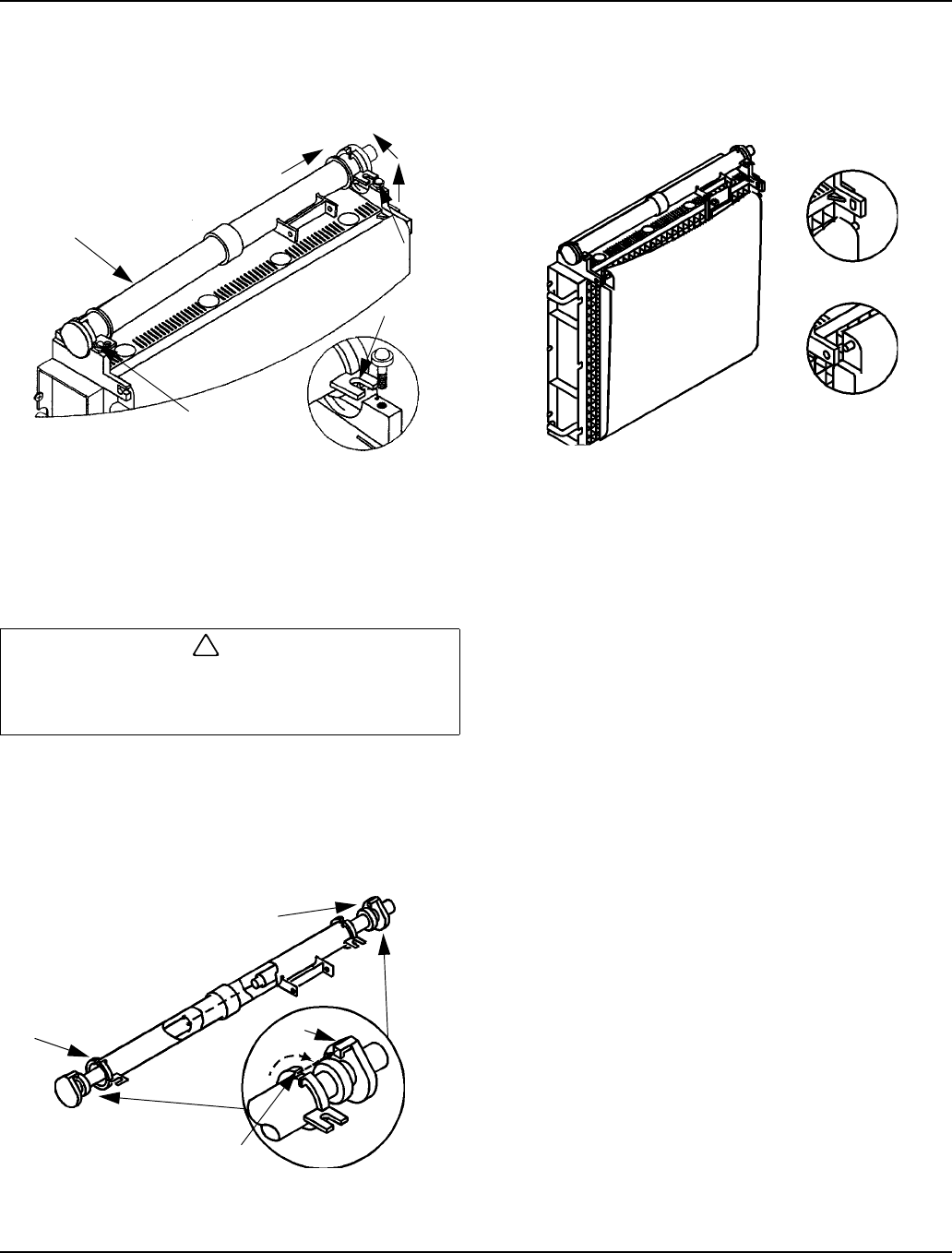

Water Distribution Tube
1. Disconnect the water hose from the distribution
tube.
Water Distribution Tube Removal
1. Loosen the two thumbscrews which secure the
distribution tube.
2. Lift the right side of the distribution tube up off the
locating pin, then slide it back and to the right.
3. Disassemble for cleaning/sanitizing.
A. Twist both of the inner tube ends until the tabs
line up with the keyways.
B. Pull the inner tube ends outward.
Water Distribution Tube Disassembly
Water Curtain
1. Gently flex the curtain in the center and remove it
from the right side.
Water Curtain Removal
2. Slide the left pin out.
!
Caution
Do not force this removal. Be sure the locating pin is
clear of the hole before sliding the distribution tube
out.
SV1620
1. LIFT UP
2. SLIDE BACK
3. SLIDE TO RIGHT
DISTRIBUTION
TUBE
THUMBSCREW
THUMBSCREW
LOCATING
PIN
3
2
1
SV1211
INNER TUBE
TAB
KEYWAY
INNER TUBE
SV1213
STEP 1
STEP 2
