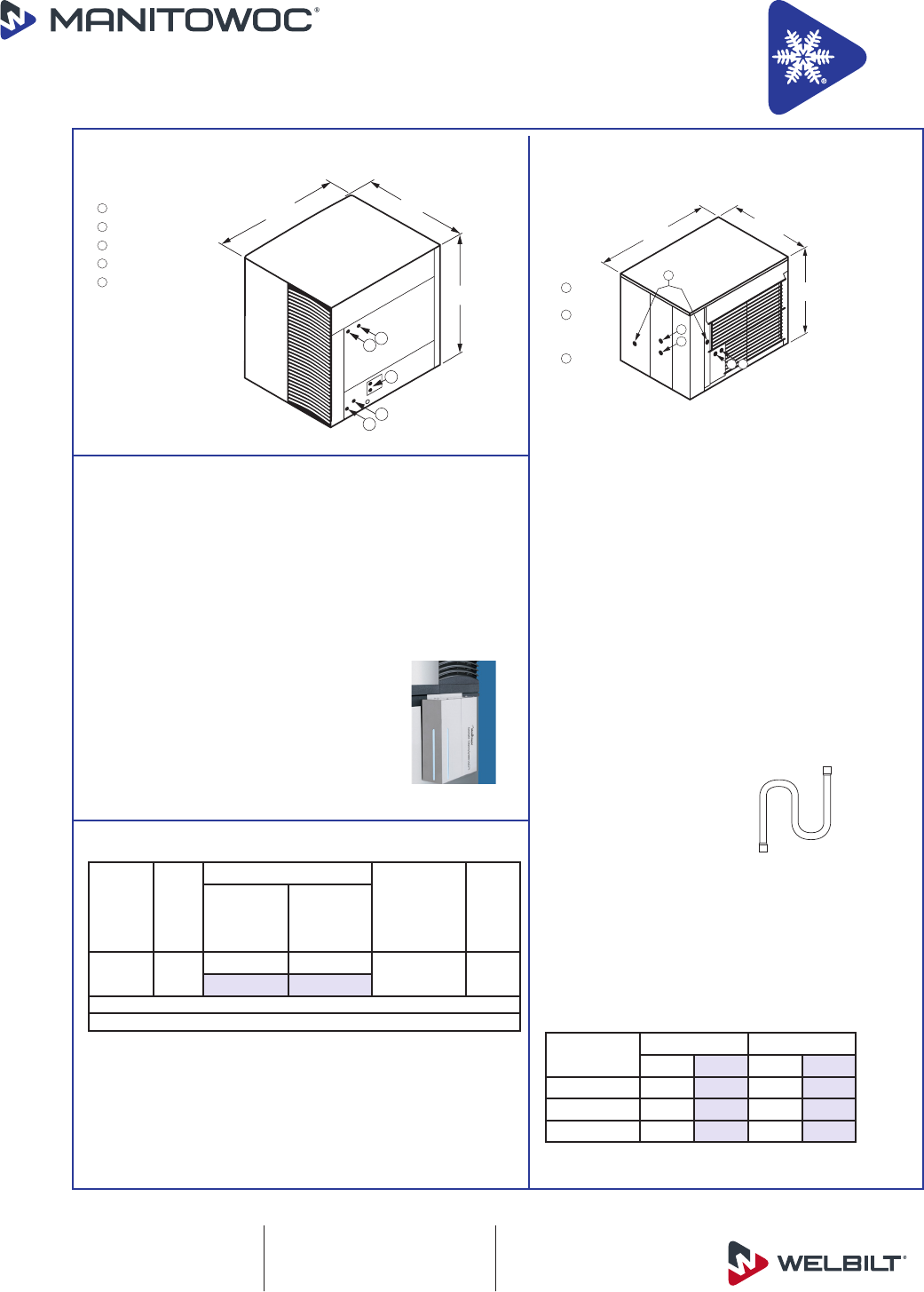

Spec Sheet

Welbilt reserves the right to make changes to the design or specications without prior notice.
Remote Air-cooled Ice Machine
A Electrical Entrance
(2) Options
Suction Refrigerant
Shut-o Valve
Liquid Refrigerant
Shut-o Valve
3/8" (0.95 cm) F.P.T.
Ice Making Water Inlet
B
C
D
E
B
C
A
D
E
21.50"
(54.6 cm)
24.50" (62.23 cm)
30.00"
(76.20 cm)
1/2" (1.27 cm) F.P.T.
Ice Making Water Drain
A Electrical Entrance
(2) Options
Suction Refrigerant
Shut-o Valve
Liquid Refrigerant
Shut-o Valve
3/8" (0.95 cm) F.P.T.
Ice Making Water Inlet
B
C
D
E
B
C
A
D
E
21.50"
(54.6 cm)
24.50" (62.23 cm)
30.00"
(76.20 cm)
1/2" (1.27 cm) F.P.T.
Ice Making Water Drain
25.75"
(65.4 cm)
24.13"
(61.3 cm)
34.00"
(86.4 cm)
A
C
C
B
B
Electrical
Entrance
(2) Options
Optional
Suction
& Liquid
Line
Connections
Suction
& Liquid
Line
Connections
A
B
C
Condensing Unit Electric
208-230/60/1 standard. 208-230/60/3 and 230/50/1 also
available. 50 Hz version of this model meets the international
standard, IEC335-1, requirements for “tropical rating,” the most
severe duty rating an ice machine can obtain, (consult factory).
HACR-type circuit breakers can be used in place of fuses.
Note: QuietQube ice machine power supply is wired independent
of CVD condensing unit.
Min. circuit ampacity: 9.0 1ph 6.6 3ph
Max. fuse size: 15 amps 1ph 15 amps 3ph
HACR-type circuit breakers can be used in place of fuses.
BTU Per Hour: 11,800 (average) 13,700 (peak)
Compressor: Nominal rating: 1 HP
Operating Limits:
Ambient Temperature Range:
-20˚ to 120˚F (-29˚ to 49˚C)
Installation Information and Dimensions:
Maximum Line Length
—100’ (30.5 m).*
Maximum Vertical Rise*
—35’ (10.7 m) above ice machine.
Maximum Vertical Drop
—15’ (4.5 m) below ice machine.
Minimum Installation Clearance
—Top/sides: 0” (0 cm)
—Back/Front: 48” (122 cm).
* A rise over 20’ (6 m) requires S-Trap Kit K-00172 - ordered
separately.
iF0600C Ice Machine
CDF0600_A Remote
Condensing Unit
QuietQube
®
iF600C Remote Ice Cube Machine
www.manitowocice.com
6674B
05/19
Tel: [phone]
Fax: [phone]
2110 South 26th Street
Manitowoc, WI 54220
Shipping Weight:
155 lbs. / 70 kg
Indigo NXT Remote Tubing Kits
Model
Line Length Weight
ft. m lbs. kg
RC-21 20 6 12 5
RC-31 30 9 17 9
RC-51 50 15 27 13
Installation Note
Minimum installation
clearance:
Top: 5" (13 cm)
Back: 5" (13 cm)
Sides: 5" (13 cm)
Shipping Weight:
203 lbs. / 92 kgs
Model
Ice
Shape
Ice Production 24 Hours
Power kWh/
100 lbs.
@90°Air/70°F*
70°Air/50°F
Water
21° Air/10°C
Water
90°Air/70°F
Water*
32° Air/21°C
Water
IYF0600C
half-
dice
600 lbs. 530 lbs.
5.53
272 kg 240 kgs
Water usage/100 lbs./45.4 kgs of Ice
Potable Water: 20 gallons, 75.7 liters
Ice machine for use with ice storage bin or ice dispenser and CVD condensing unit all ordered
separately.
*kWh per 100 lbs. is total power of ice machine and condensing unit. Ice machine is 1 ph only.
Condensing unit is 1 ph or 3 ph.
Ice Machine
Electric
115/60/1 standard.
(230/50/1 also available,
consult factory.)
Total Amps: 1.1
Max. fuse size: 15 amps
HACR-type circuit breakers
can be used in place of
fuses.
Specifications
Operating Limits:
Ambient Temperature Range:
40˚ to 110˚F (4.4˚ to 43.4˚C)
Water Temperature Range:
40˚ to 90˚F (4.4˚ to 32.2˚C)
Water Pressure Ice Maker Water In:
Min. 20 psi (137.9 kPA)
Max. 80 psi (551.1 kPA)
iAuCS
®
Accessory
Automatic Cleaning
System purchased as an
option and installed in
the field.
