Multi-Card Reader/Writer USER MANUAL MODELS 100786 & 175883 MAN-100786/175883-UM-0408-01

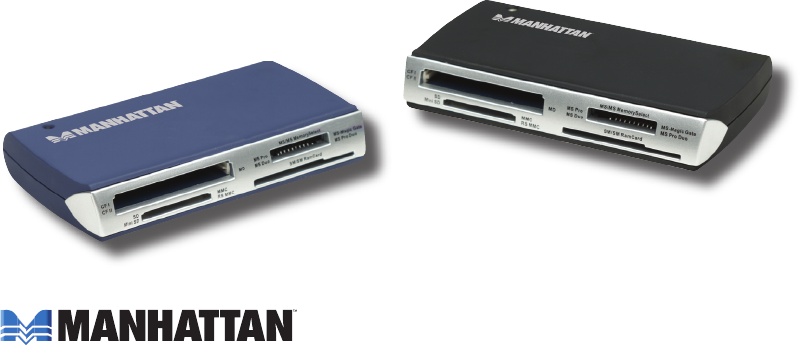

Thank you for purchasing the MANHATTAN Multi-Card Reader/Writer, Model 100786 (black) or Model 175883 (blue). ® Convert any unused PC bay into a digital content management center that lets you access picture files from memory cards without directly connecting a camera or other media device to the computer.
installatioN ‡ 1. Using the included USB cable, connect the Multi-Card Reader/Writer to a USB port on your computer. Double-click on "My Computer" to confirm that the four removable disk icons appear: CompactFlash, Memory Stick (MS), MultiMedia Card / SecureDigital (MMC/SD) and SmartMedia. NOTE: MMC/SD Compact SmartMedia MS/MS Pro (F:) Flash (G:) (H:) (I:) Screen images vary depending on the operating system being used. 2. Check that the green Power LED lights to confirm a proper connection. 3.
Memory Card Formatting: SM (SMC) and XD users may need to format the memory card prior to use, indicated by a "write protection" or "read/write error" message. If this is the case, follow the steps below to use the Flash Ranger tool for formatting the memory card. 1. Go to "Start" ‡ "Programs" ‡ "Multimedia Card Reader" ‡ "Flash Ranger." 2. Select the SMC/XD icon, then click "Low Level Format." 3. When prompted with "Low level format is completed.
Specifications Standards and Certifications • Hi-Speed USB 2.0, USB 1.1, CE, FCC, WEEE Connections • Hi-Speed USB 2.0 Mini-B General • Chipset: Alcor 6368 • LED: Power/activity • Transfer rates: 480 Mbps / 12 Mbps / 1.5 Mbps • Material: plastic Physical • Textured matte finish • USB type A male to mini B male cable, 0.6 m (2 ft.) • Dimensions: 10.5 x 18 x 6 cm (4.1 x 7 x 2.4 in.) • Weight: 62.4 g (2.2 oz.) System Requirements • USB port • Compatible with Windows 2000/XP/Vista, Mac 9.2 and 10.1.2.
• Supports CompactFlash Type I / II, CF Elite Pro, CF High Speed, CF Picture, CF PRO I/II, Ultra-X CF*, CF Wa, Extreme CF, Extreme III CF, Ultra II CF, XS-XS CF, IBM and Hitachi Microdrive, MagicStor, Memory Stick, Memory Stick Duo*, Memory Stick Extreme III PRO, Memory Stick Extreme PRO, Memory Stick PRO, Memory Stick PRO Duo*, Memory Stick ROM, Memory Stick Select, Memory Stick Ultra II PRO, High Speed Memory Stick PRO, High Speed Memory Stick PRO Duo*, MagicGate, MagicGate Duo*, MagicGate PRO, MagicGate
MANHATTAN offers a complete line of PC Components, Peripherals, Cables and Accessories. Ask your local computer dealer for more informationor visit us online at ® www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
