Usage of GPS Shield

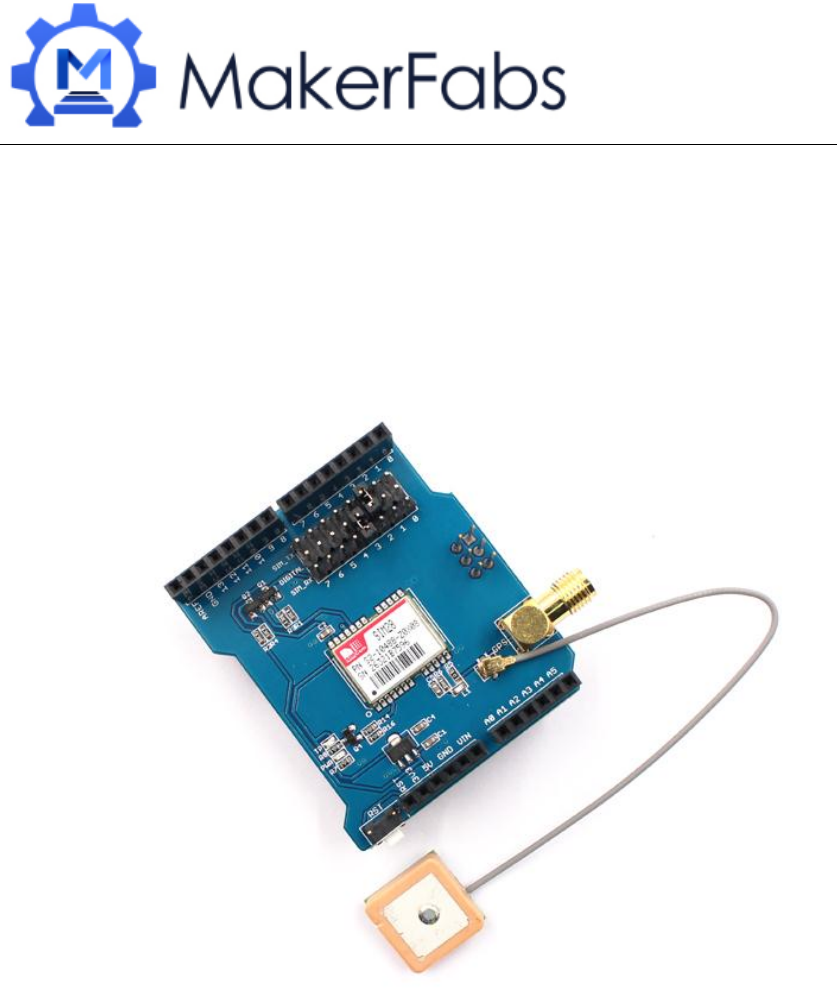

The GPS Shield based on the SIM28 GPS module. It is a cost-efficient and

field-programmable gadget. It features 22 tracking / 66 acquisition channel GPS

receiver. The sensitivity of tracking and acquisition both reach up to -160dBm,

making it a great choice for personal navigation projects and location services,

as well as an outstanding one among products of the same price class.

Features:

 Dimensions:53mm*47mm*23mm

 Default BaudRate:9600

 Supports NMEA and U-Blox 6 protocols

Usge:

Hardware connection:

Just plug it to your Arduino or Maduino, connect it to your PC.

PAGE 1
www.makerfabs.com Usage of GPS Shield The GPS Shield based on the SIM28 GPS module. It is a cost-efficient and field-programmable gadget. It features 22 tracking / 66 acquisition channel GPS receiver. The sensitivity of tracking and acquisition both reach up to -160dBm, making it a great choice for personal navigation projects and location services, as well as an outstanding one among products of the same price class.
PAGE 2
www.makerfabs.com Example 1: Print the GPS data with serial port Download the Demo code from our website: http://www.makerfabs.com/fabs/index.php?route=product/product&path=9 0_91&product_id=133 open it and upload it to your Arduino or Maduino.
PAGE 3
www.makerfabs.com Open the monitor then you can see the GPS information.
PAGE 4
www.makerfabs.com Example 2: Use the u-center software to Located your place 1. Download the u-center from here and install it: https://www.u-blox.com/en/product/u-center-windows 2. Upload the demo code in Example 1. 3. Open the U-center, choose the baud rate at 9600.After a while, you will get the location of the GPS Shield.
PAGE 5
