SECTION 1. FEATURES AND SPECIFICATIONS
CONFIGURATIONS
REFERENCE DOCUMENT
SPECIFICATIONS
SECTION 2. INSTALLATION
MOUNTING
CONNECTORS
TIMING
DATA
STROBE
CARD PRESENT
3
SECTION 2. INST
ALLA
TION
This section consists of instal
lation and checkout of the Reader.
MOUNTING
The dimensions for mounting with
the cover are shown in Figure 2-1.

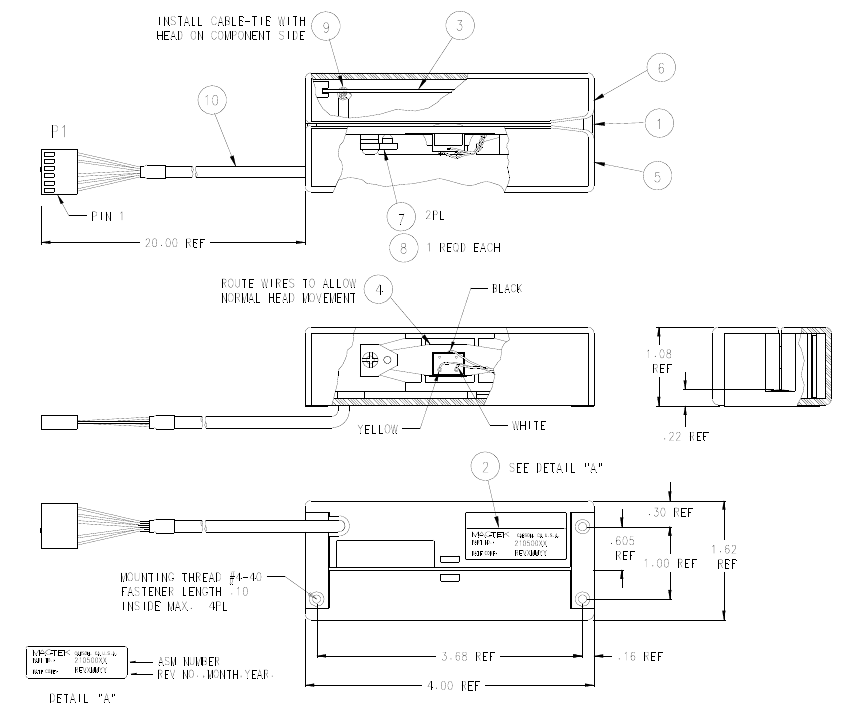

Figure 2-1. Reader Mounting Dimensions With Cover
1
...
...
7
8
9
10
11
...
...
14
