101-Millimeter Compatible Swipe Reader
4
The dimensions for mounting without
the cover are shown in Figure 2-2.

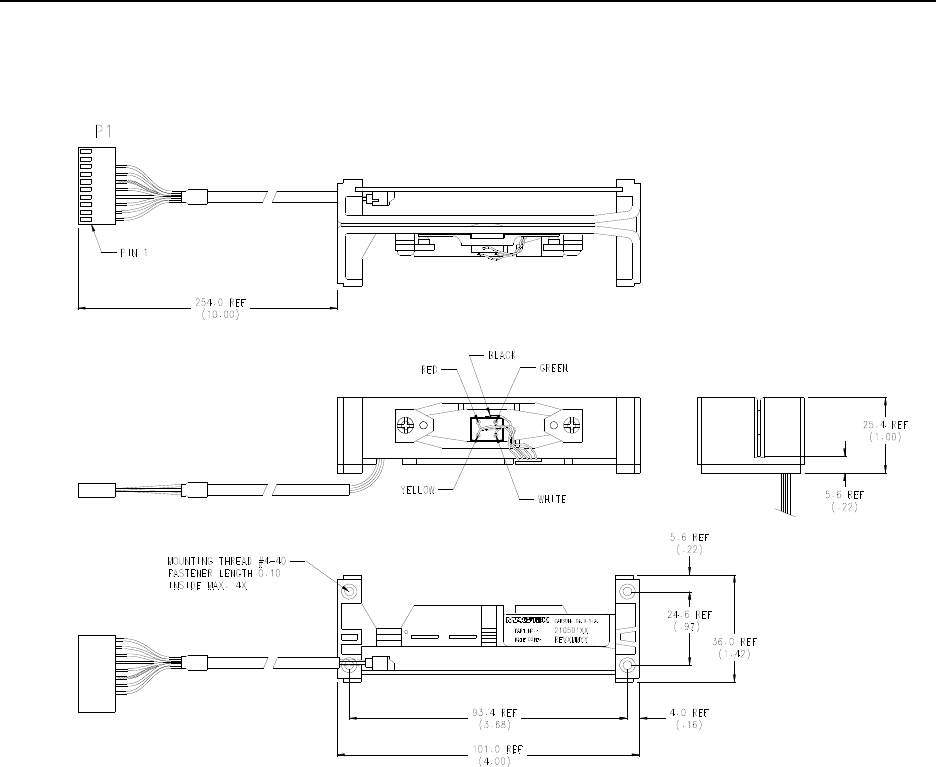

Figure 2-2. Reader Mounting Dimensions Without Cover
