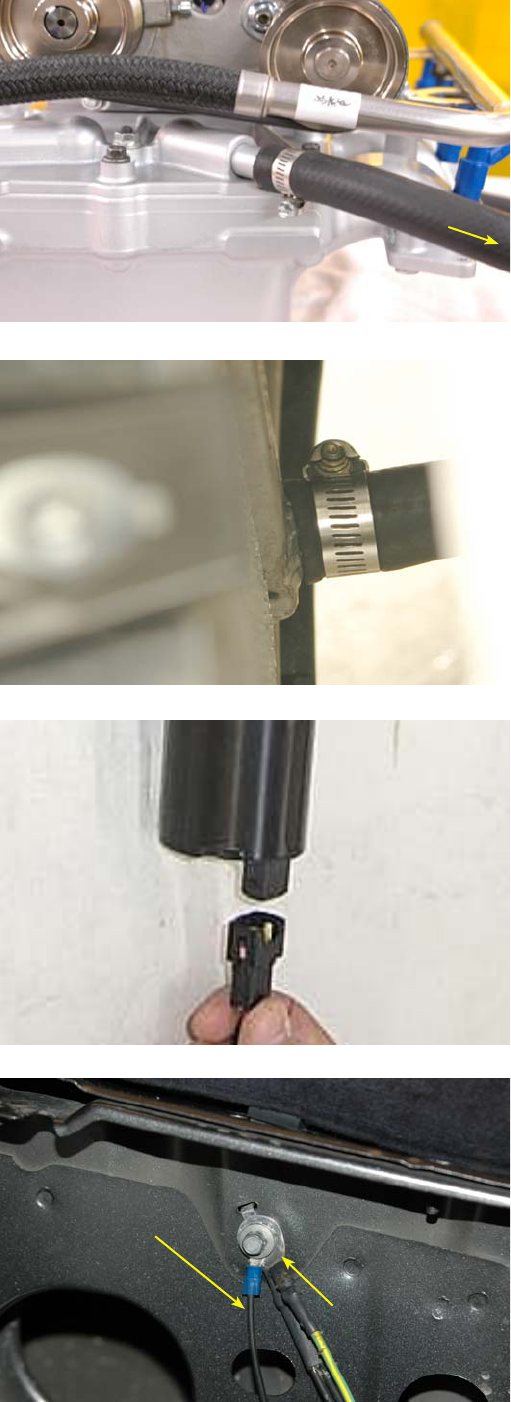

173. Locate the end of the 60” hose previously
installed on the right side intercooler barb before
the supercharger was installed on the engine.
Route this hose forward to the right side of the
heat exchanger.
60” Hose
174. Connect the remaining end of the 60” hose
to the lower heat exchanger barb and secure it
with a #10 or spring clamp supplied.
175. Route the RED and BLACK wires with
the pump electrical connector from the pump
relay forward to the intercooler pump. Plug the
connector into the end of the pump.
Pump
Black Wire
from Relay
Ground
Connection
176. Locate the harness ground connection
located on the inner fender, just ahead of the
intercooler reservoir. Install the BLACK (Ground)
wire by removing the bolt with a 8mm wrench.
Place the bolt through the eye of the black wire
ring connector and re-install the bolt tightening it
securely.
05/06
Page 46
2004-2006 Ford F-150 3V Supercharger Installation Instructions magnacharger.com
