172. Connect the remaining end of the previously
installed 18” “elbow” hose to the upper barb of the
heat exchanger located on the driver side. Secure
the hose with a #10 or spring clamp supplied.
Heat Exchanger
Bracket
Bumper Support
Bumper Bracket

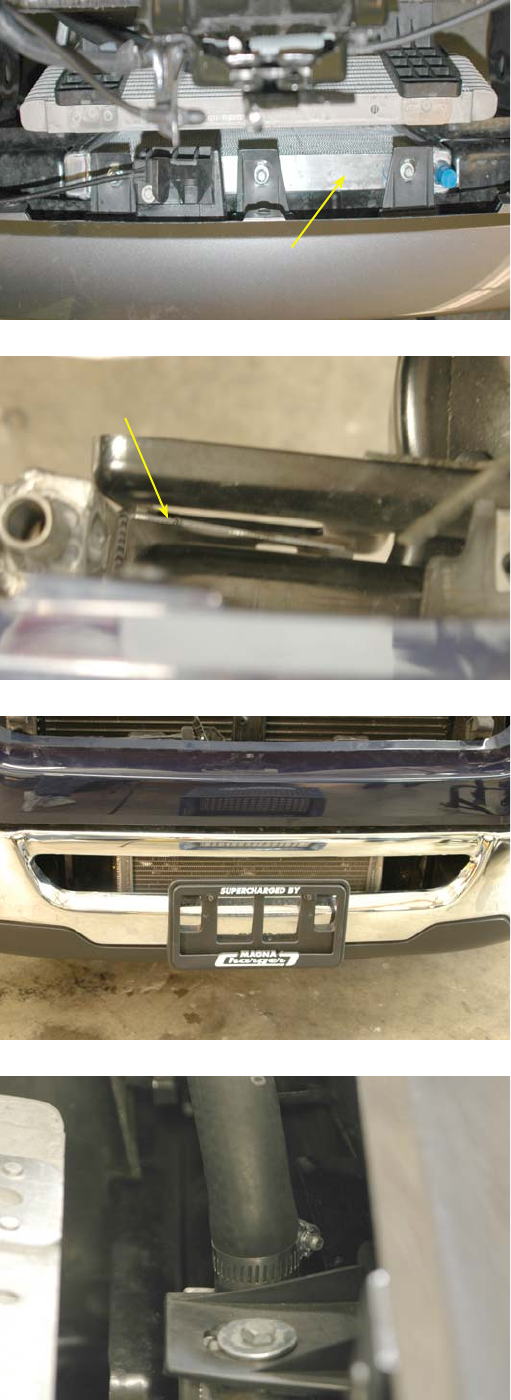

170. The heat exchanger mounting bracket will
“sandwich” between the bumper and bumper
mounting bracket. Once the heat exchanger is in
place, replace the two bolts previously removed,
re-adjust the bumper position and torque all four
nuts to 70 ft-lbs (90Nm).
171. Here is the heat exchanger installed.
169. From below the vehicle install the
intercooler heat exchanger into position by
placing the heat exchanger mounting brackets
between the bumper and mounting bracket.
Intercooler Heat Ex-
changer
Oil Cooler
05/06
Page 45
