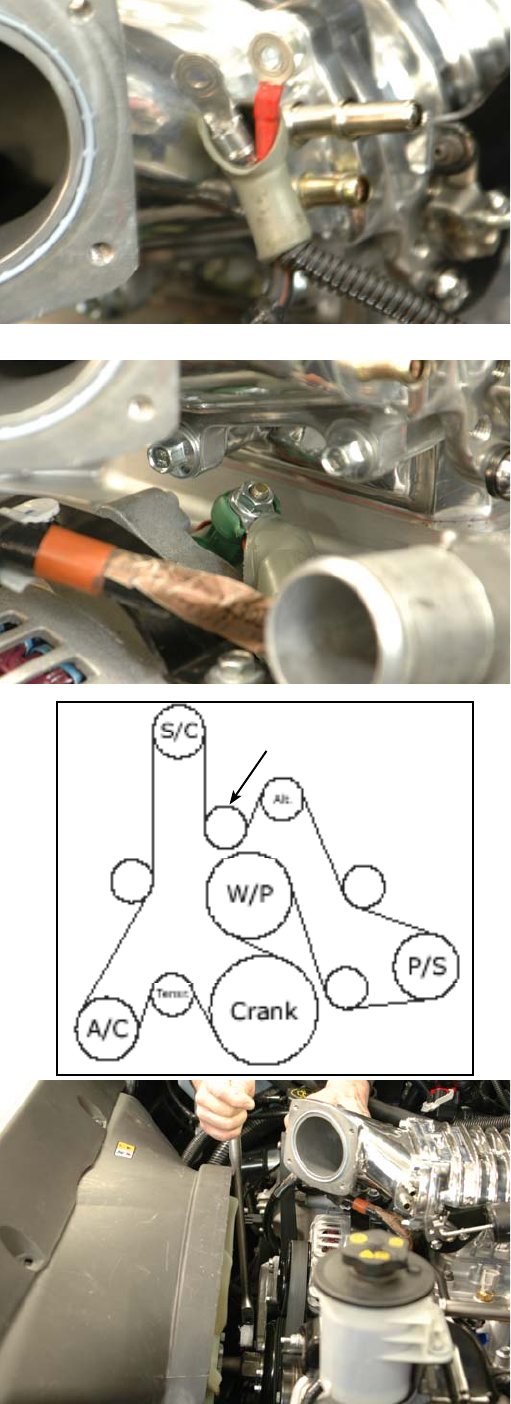

93. Locate the new intercooler wiring harness and
pass the red power connection under the boot of
the alternator cable connection.
96. Using a “breaker bar” or a long 1/2” ratchet
wrench, relieve the tension on the tensioner
arm and install the new drive belt using the belt
diagram provided.
94. Re-install the alternator cable connection
AND the intercooler power connector onto the
B+ terminal on the alternator. Replace the nut
and tighten it securely with a 10mm wrench. Pull
the boot over the terminal to cover it. Secure the
alternator cable to the alternator bracket using one
of the tie-straps supplied.
95. Here is the new drive belt routing diagram.
Idler
Idler
Idler
Idler
Drive Belt= Gates #K061265
New
Idler
05/06
Page 26
2004-2006 Ford F-150 3V Supercharger Installation Instructions magnacharger.com
