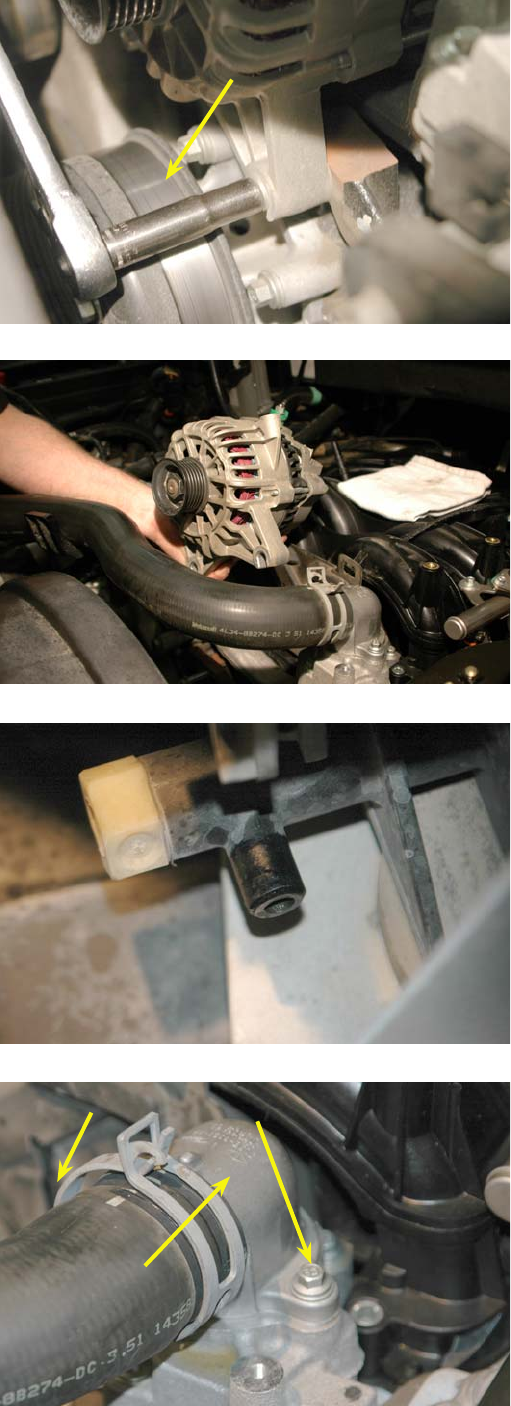

41. Remove the two alternator mounting bolts

below the alternator with a 12mm socket wrench.

Note: 2004 owners will need to replace the water pump pulley

with a 2005-2006 water pump pulley at this time. Ford part #

F7UZ-8509-AA.

42. Remove the alternator and set it aside.

43. On the right, lower corner of the radiator

locate the drain valve. Open the drain valve only

if the engine is cool. CAUTION! Do not open the

drain valve if the vehicle is still hot. Allow the

vehicle to cool ﬁ rst. The cooling system is under

pressure! Relieve the pressure in the cooling sys-

tem by removing the radiator reservoir cap ﬁ rst.

Collect the coolant in a suitable drain pan.

Water Pump

Pulley

44. Remove the upper radiator hose by

squeezing the spring clamps at each end with a

pair of pliers and the pulling the hose free. Next,

remove the two bolts that secure the thermostat

outlet with a 10mm socket wrench.

Bolt

Thermostat

Outlet

Bolt
