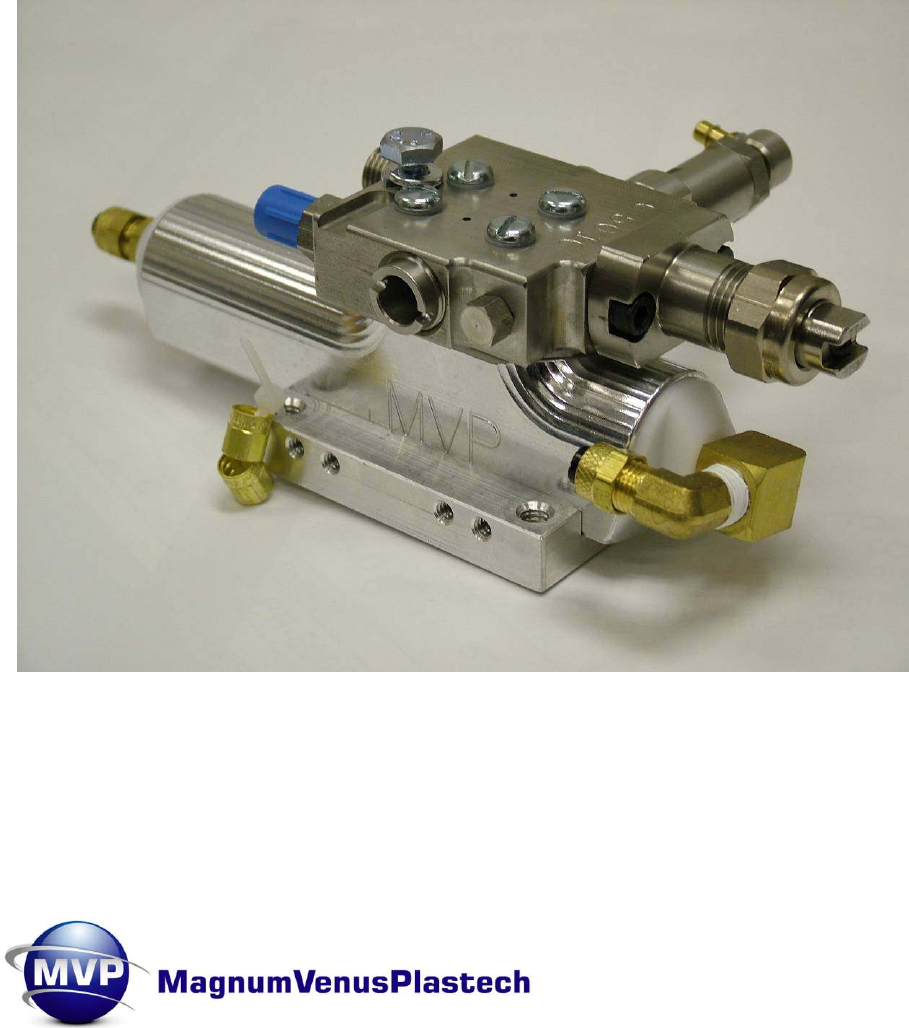

Automatic Pro Gun Manual Introduction: The Auto Pro Gun is an air trigger gun; meaning when an air signal is sent the actuator the actuator piston pushes on the actuator stem and rotates the gun block into the on position. The Auto Pro Gun works very similar to a dual ball valve in that the valve rod rotates and the catalyst and resin holes line up with the ports in the gun block allowing material to flow.
Automatic Pro Gun Manual Gun Assemblies & Components: This manual covers the following Auto Pro Gun Assemblies: 58685-1 CPG-1000-A CPG-1000-A-INT CPG-2000-A CPG-2000-A-INT CPC-1000-A CPC-1000-A-INT CPC-1000-A-INV CPC-2000-A CPC-2000-A-INT CPT-2000-A PRTM-DG-3000-A AUTO PRO GUN ASSEMBLY AUTO PRO GUN ASSEMBLY AUTO PRO GEL COAT GUN – INTERNATIONAL AUTO PRO GEL COAT GUN – FIT AUTO PRO GEL COAT GUN – INTERNATIONAL FIT AUTO PRO CHOPPER GUN AUTO PRO CHOPPER GUN – INTERNATIONAL AUTO PRO GUN ASSEMBLY – INNOVATOR A
Automatic Pro Gun Manual Tools required You will need the following tools: • Rubber mallet • Thread Sealant • Adjustable wrench • Needle-nose pliers • Flat-end screwdriver • Lubriplate™ lubricant (08465) • Scribe set (08126) • Pro Gun ™ oil (04394) • Turbulent Mixer Puller (6705-2-1) • Seal Installation tool (58661-1) • Alignment tool for resin seals (58663-1) • Alignment tool for catalyst seals (58662-1) • Pro Gun ™ screwdriver (9301-3-2) and packing bit (6705-1-1) You should also have appropriate cleanin
Automatic Pro Gun Manual 7. Place an empty container under the ball valve located at the bottom of the filter assembly. 8. SLOWLY open the ball valve, you can leave the ball valve open or close it when the all the pressure has been released. Disable Catalyst Pump Slave Arm pumps 1. Remove the quick pin from the top of the catalyst pump and upper slave arm. 2. Tilt the catalyst pump away from the resin pump until the catalyst pump is resting against the vertical connecting post. 3.
Automatic Pro Gun Manual Gun Disassembly: WARNING: To prevent injury, be sure all air is disconnected from the gun and that all pressure has been relieved before attempting to remove trigger guard. Note: The bolt that secures the trigger guard to the air cylinder also serves as a plug for the end cap. Removing this bolt can result in injury from escaping pressurized air if air pressure is not relieved. 1. Check to be sure all air is disconnected from the gun 2.
Automatic Pro Gun Manual Remove Actuating Stem 1. Unscrew the actuating stem from the valve rod. Tightly clamp the actuating stem into a soft jawed vise and rotate the whole gun block. Note: The screw driver slot in the end of the actuating stem should not be used for removal as if it becomes damaged the stem will not fit into the actuator bushing. Make sure the actuating stem is smooth or it will wear out the actuator bushing. ACTUATOR STEM Remove & Disassemble Flush Valve Assembly 1.
Automatic Pro Gun Manual Remove Mix Housing 1. Remove the nozzle cap from the mix housing. 2. Remove the nozzle from the cap. 3. Remove the mix housing (5104-20-1) by unscrewing the screws holding the mix housing to the gun block. 4. Pull the injector and injector seal out and set the injector assembly aside. 5. Use the turbulent mixer puller to remove the turbulent mixer by inserting the puller and giving a slight twist. 6.
Automatic Pro Gun Manual Remove Hose Fittings 1. Remove and clean the catalyst fitting and o-ring on the rear of the gun block. 2. Remove and clean the resin fitting and o-ring on the rear of the gun block. Remove Valve Rod 1. Use the magnetic handle and packing bit to unscrew the packing nuts (5104-8-1) from both the catalyst and resin side. Use caution not to damage the packing bit. If you are unable to remove the packing nut soak in a solvent or apply heat to the packing nuts. 2.
Automatic Pro Gun Manual Remove Catalyst and Resin Seals 1. Insert the seal installation tool into one of the side ports and gently tap it completely through the gun block with a rubber or hammer mallet. As the tool is tapped through the interior of the gun block it will remove the seal sets for both the resin and the catalyst sides. 2. Remove catalyst and resin seal (relief spacer and secondary seal) from the seal installation tool. Clean with solvent.
Automatic Pro Gun Manual Gun Block Assembly: Clean Block Assembly • • • Discard o-rings and seals. Clean remaining components with solvent and allow to air dry. You have now disassembled the gun block. Install Secondary Seals 1. Place one of the secondary seals (5104-3-1) into the center of the gun block where the center spacer goes. Gently push the secondary seal into position with something flat, flush with the gun block. Use caution not to damage it the seal. 2.
Automatic Pro Gun Manual Reassemble Catalyst Components 1. Place the catalyst components onto the seal installation tool in the following order: • Packing ring (5104-7-1) • Catalyst seal (5104-6-1) • Relief spacer (5104-4-1) Note: The hole in the catalyst seal should be aligned with the port in the gun block before inserting the seal installation tool into the gun block. Valve Rod Relief Spacer Packing Nut Catalyst Seal Packing Ring Packing Ring Resin Seal Packing Nut 2.
Automatic Pro Gun Manual Align Catalyst Seal 1. Hold the catalyst alignment tool (6705-3-1) (tapered drill bit) firmly with a pair of pliers. 2. Insert the catalyst alignment tool (tapered end first) into the gun block through the rear of the gun block 3. Gently press and move the alignment tool around until the holes in the catalyst seal aligns with the hole / port in the gun block. Note: At this point, the catalyst side packing nut should only be hand tight. Reassemble Resin Components 1.
Automatic Pro Gun Manual Install Valve Rod 1. Insert the valve rod (5104-2-1) into the gun block through the resin side. Use a packing tool to center the valve rod. Note: Make sure that the valve rod is correctly aligned; the larger hole goes on the resin side, while the smaller hole goes on the catalyst side. Note: The middle hole, into which the actuating stem will be inserted, must also be correctly aligned.
Automatic Pro Gun Manual Reinstall Check Valve on International Pro Guns DANGER: To replace this valve, contact Magnum Venus Plastech. These valves have undergone specific remanufacture at Magnum Venus Plastech for the Pro Gun ™. Using a check valve not obtained directly from Magnum Venus Plastech may result in contamination and / or dangerous ignition of the catalyst. 1. Reinstall the check valve (5104-04-01) and o-ring (O-S-5-125) into the side port on the catalyst side of the gun block.
Automatic Pro Gun Manual Optional Flush Valve Configurations: There are several variations on the flush valve assembly to include air / solvent purge and high pressure flush. Check the parts drawing for the valve assembly installed on your gun assembly.
Automatic Pro Gun Manual Mix Housing Options • Standard Mix Housing (5104-20-1) – Use with all turbulent mixers and most applications. • FIT Mix Housing (VPG-1001) – Use with FIT style spray tips. Uses mixer VPG-1003. • FIT Low Flow Mix Housing (VPG-1001-1/4) – replacement mixer TRT-1018-1/4 Distribution Ring Selection There are three different distribution rings and they are as follows: • Standard Distribution Ring 5104-17-1 (58607-1) – Used for most applications where outputs are not critical.
Automatic Pro Gun Manual Actuator Rebuild: Actuator Disassembly 1. Remove the two o-rings (O-V-013) from the underside of the cylinder body (58631-1). 2. Unscrew the cylinder caps (5106-4-1) from each end of the cylinder body. 3. Remove the o-ring (O-V-020) from each of the cylinder caps 4. Remove the actuating piston (5106-7-1) by pushing it out the back end (long end) of the cylinder body with your fingers or a blunt tool. 5.
Automatic Pro Gun Manual Assemble Auto Pro Gun Actuator Cylinder 1. Place a new o-ring (O-V-020) on the actuating piston (5106-7-1). 2. Insert the actuating bushing (5106-5-1) into the actuating piston. Note: The hole in the actuating bushing must be facing up so the bushing hole can receive the actuating stem when the gun block is assembled. 3. Use MVP Pro Gun Oil (6706-3-1) to lubricate the interior of the cylinder body and the actuating piston. 4.
Automatic Pro Gun Manual Assemble Auto Pro Gun Modules 1. Install the Actuator Seal onto the actuator assembly. Note: The hole in the actuating bushing of the actuator must be facing up so the bushing hole can receive the actuating stem of the gun block. 2. Using the four mounting screws (5106-6-1) secure the gun block to the actuator. Note: The actuating stem on the gun block must be in the hole of the actuator bushing. If you are unsure, remove the front end cap of the actuator and look. 3.
