Installation
Main Panel
(Utility/Generator Input)
AC Terminal Block
(AC input and output wiring)
SINGLE IN / SINGLE OUT wiring
Sub-Panel and Outlets
(Inverter Loads)
230
VAC
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Maximum
30 amp breaker
(single pole)
required to
inverter AC input
ON
OFF
ON
OFF
ON
OFF
AC HOT OUT
(to Sub-Panel)
AC NEUT OUT (to Sub-Panel)
AC GROUNDS
(to/from both
panels)
AC NEUT IN
(from Main Panel)
AC HOT IN
(from Main Panel)
RD-E Series Inverter
230
VAC
BLUE
BLUE
BROWN
BROWN

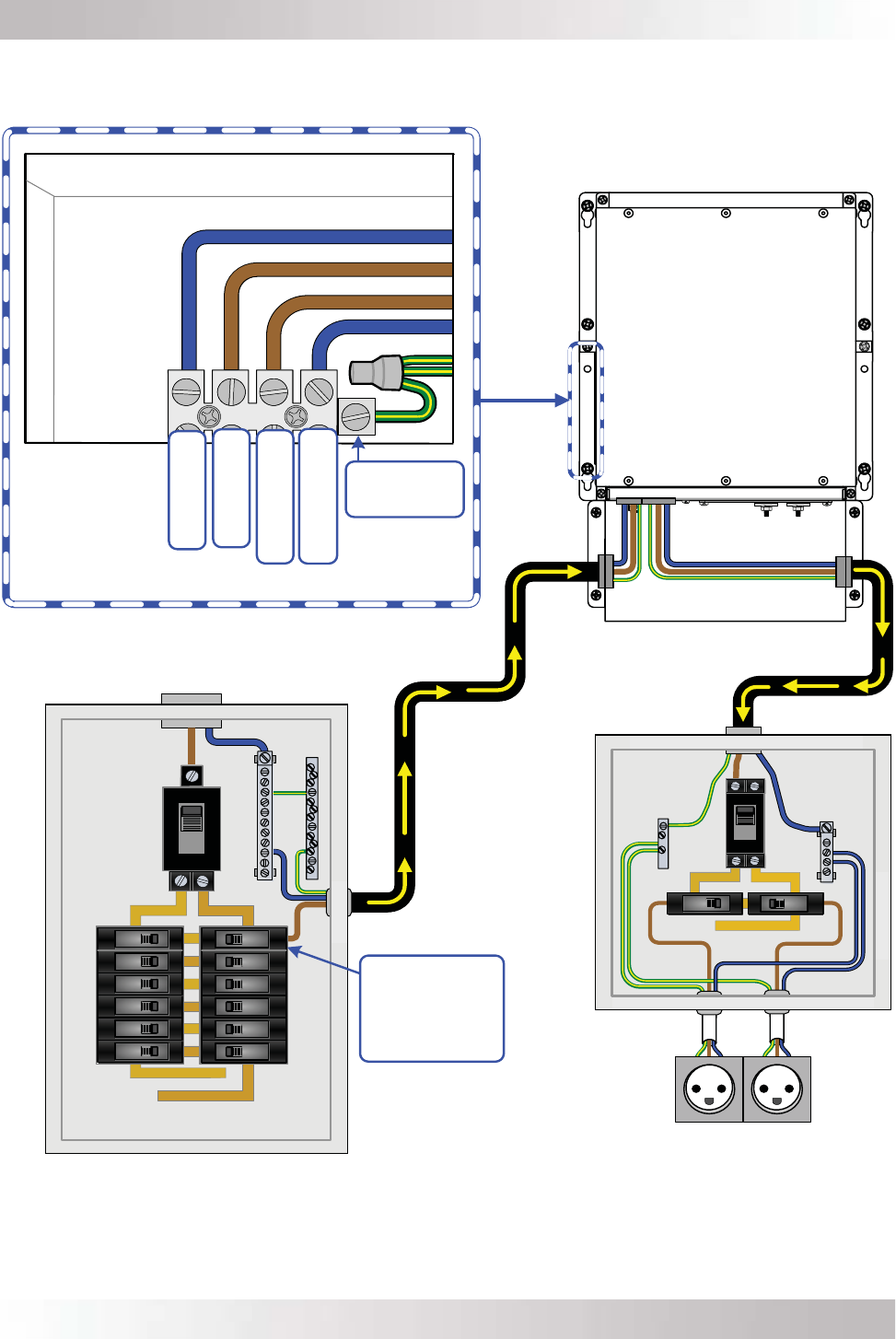

Figure 2-11, AC Wiring Input/Output
