3.0 GETTING TO KNOW YOUR AEROPAD MINI
This chapter first gives a description of the LED indicators and ports of the
AeroPad Mini. Then it outlines the steps in connecting the unit to your computer.

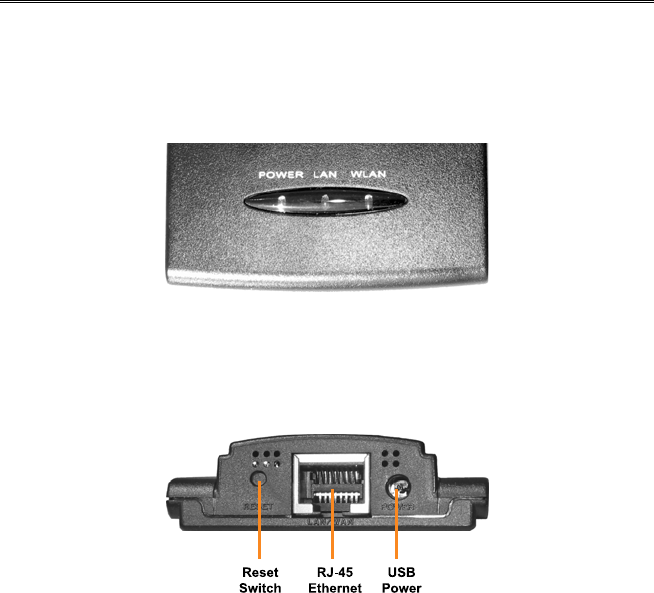

3.1 Front LED’s and Back Panel
LED’s:
• Power LED: ON when the unit is powered up
• LAN LED: ON indicates LAN connection; BLINK indicates LAN activity
• WLAN LED: ON indicates WLAN is working; BLINK indicates wireless
activity.
Ports:
• USB Power Jack: Obtain power from the host computer's USB port.
• Reset Switch: Use to reset the AeroPad Mini back to factory default settings.
• RJ-45 Ethernet Port: Connects to the Ethernet port of the host computer.
