Creating simple components 29
14.
Insert a blank keyframe in the second frame of the assets layer by selecting the frame, and then

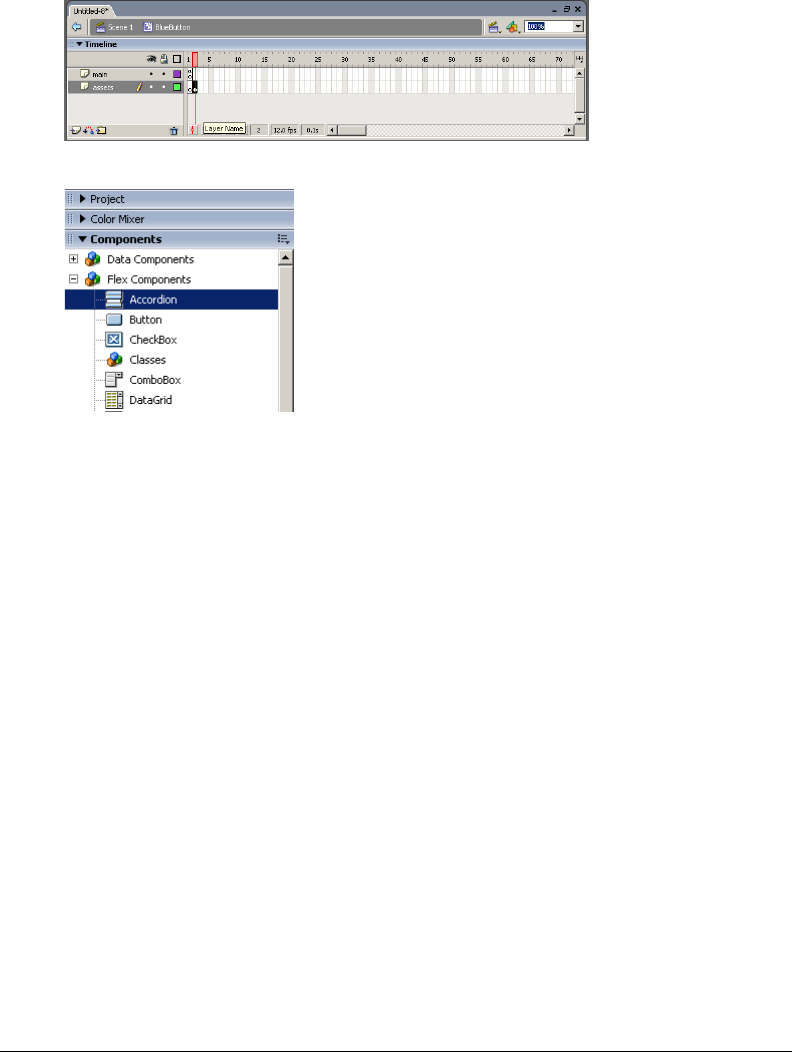

selecting Insert > Timeline > Blank Keyframe. The following figure shows the layers for the
BlueButton symbol:
15.
Find the Button control in the Flex Components list:
If you do not see the Flex Components listed in the Components panel, see “Adding Flex
classes and components to the Flash IDE” on page 8.
16.
Drag the Button control from the Flex Components list onto the second frame of the
assets layer.
Flash adds the Button to the Library as a Compiled Clip asset.
17.
Right-click the BlueButton movie clip in the Library and select Component Definition.
18.
In the Component Definition dialog box, set the AS2.0 Class field to BlueButton.
19.
Click OK.
Flash converts the symbol to a component.
20.
Right-click the component in the Flash Library and select Export SWC File.
21.
Save the new SWC file as BlueButton.swc.
22.
In a text editor, create a new MXML file that contains the following code:
<?xml version="1.0"?>
<mx:Application xmlns:mx="http://www.macromedia.com/2003/mxml" xmlns="*">
<BlueButton label="Blue Button" />
</mx:Application>
