Parallel system in passive mode CM12, CM15 and CM18

If you require more speakers for better sound distribution and you only have a limited number of output channels

on your amplier, you can connect more than one speaker to each channel. This can be done by linking the speakers

for each channel in parallel as illustrated. However, always remember to check the minimum loading impedance

specied for the amplier. The maximum number of identical C-range speakers that can be connected to each

amplier channel is the impedance of the speaker divided by the minimum specied speaker impedance rating of

the amplier (often 4 ohms).

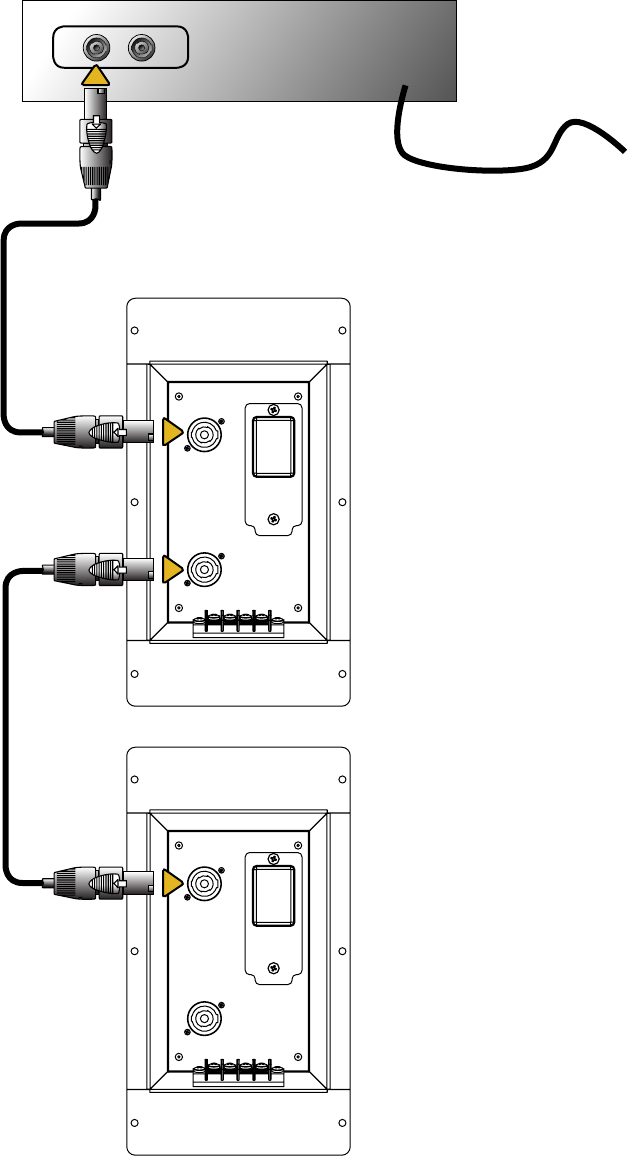

Output

Amplier

In/Link

Mains

In/Link

Terminal on speaker 1

Terminal on speaker 2
