SECTION 6 OPERATION
169000 41 Revision F
6.6 HEADER ATTACHMENT:
SELF-PROPELLED
Refer to your self-propelled windrower
operator’s manual for procedures for
mechanically attaching the auger header to the
self-propelled windrower, and for modifications if
required to the windrower hydraulic connections.

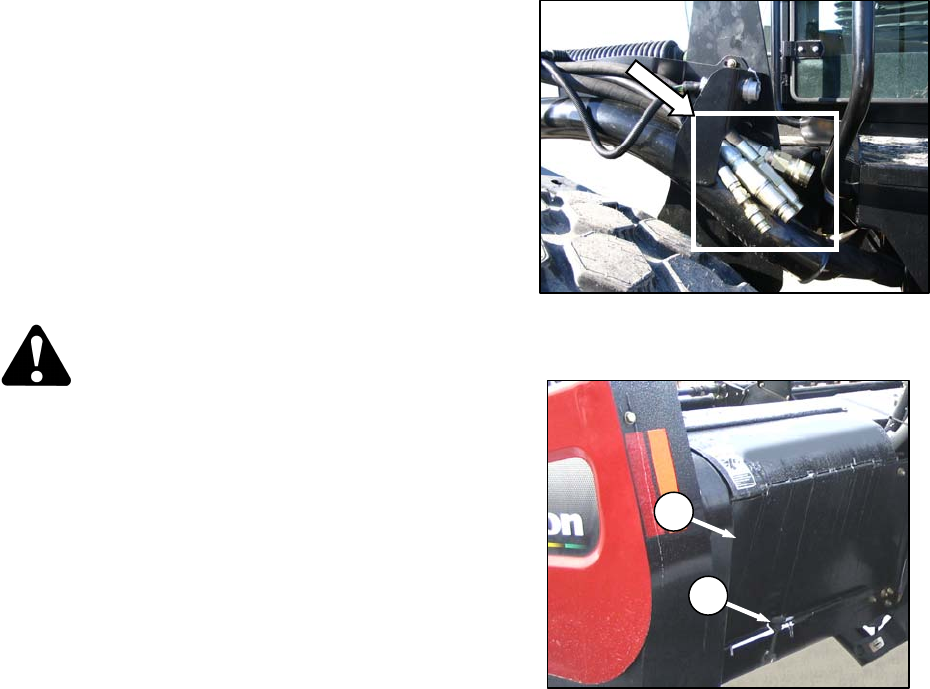

Refer to the following procedures for electrical
and hydraulic connections. Header drive
hydraulic hoses and electrical harness are
located on the LH cab-forward side of
the windrower.
6.6.1 A40-D
CAUTION
To prevent accidental movement of
windrower, place all controls in NEUTRAL or
in PARK, engage park brake (if applicable),
shut off engine, and remove key.
IMPORTANT
For windrowers with Reverser Kit
#B4656 to prevent draper header reel
damage and improper operation:
If switching between A40 Auger Header
and Draper header, hose plumbing to
reverser valve must be changed to suit
the header type. See Instruction MD
Part #169213 for proper plumbing for each
header type.
6.6.1.1 M100, M105
The M100 and M105 are factory-equipped with
four hoses.
a. Disengage rubber latch (A), and open driveline
shield (B).
(continued next page)
A
B
